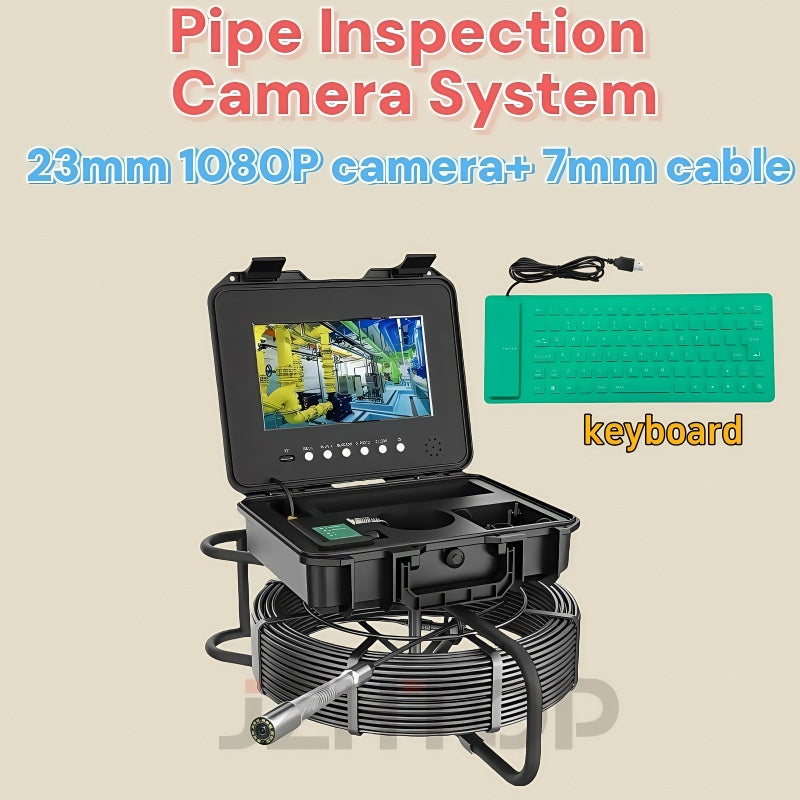

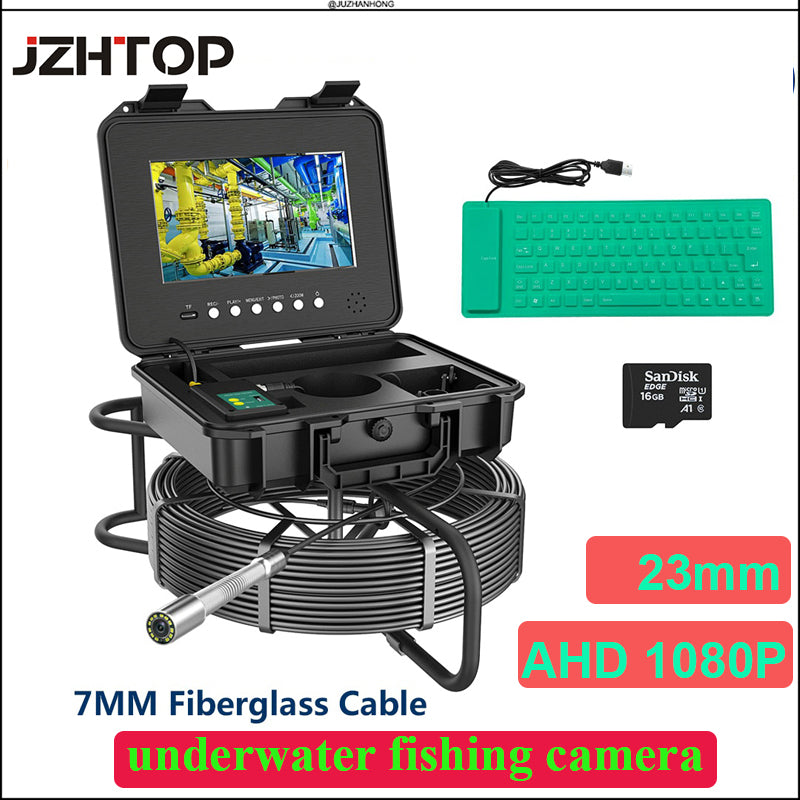

Pipe Drain Sewer Inspection Camera 7mm Cable 23mm 512hz Sonde Self Leveling 1080P 10.1'IPS Meter Counter Keyboard DVR

10.1" IPS Pipe Sewer Drain Inspection Camera Meter Counter DVR 7mm Cable Auto Self-Leveling 512hz Locator AHD 1080P Video+Audio Recording 5X Image Enlarge Borescope

Video + Audio + 5X Image Enlarge:

Pipeline Wall Sewer Inspection Snake Camera built-in TF Card slot,16GB TF card included,it is avialiable to view live video and save video recording and photos and audio record.You can record the inspections and playback via the pipe system.（DVR Edition Video Format :MP4 Photo format :JPG)+ZOOM to zoom in or zoom out 0-5 times

MONITOR&CABLE：

Professional Drain Pipe/Sewer Pipeline Inspection Camera is designed with a 10.1 inches color IPS LCD monitor for outdoor inspections.The material of wire is fiberglass rod(diameter: 7MM),anti-corrosion/cold/tensile.

DVR Recording Function：

Pipeline Wall Sewer Inspection Snake Camera built-in TF Card slot,16GB TF card included,it is avialiable to view live video and save video recording and photos and audio record.You can record the inspections and playback via the pipe system.（DVR Edition Video Format :MP4 Photo format :JPG)

Meter Counter & Keyboard function:

Can change the metric and imperial,support input the text information /symbols to mark events during the work

512HZ TRANSMITTER:

This endoscope camera has a built-in 512 hertz transmitter that helps to easily detect any blockage or area of interest. This greatly helps save time from having to dig and locate the problem. The sonde transmits a 512Hz signal that can be picked up with any compatible locator, allowing you to pinpoint the transmitter’sposition underground.

PORTABLE CARRY CASE&LONG BATTERY：

Pipe Wall Sewer Inspection Snake Camera Kit with heavy duty padded aluminum case stores all contents, convenient to carry around. 12V 4500mAh Li-battery included supports approximate 8 hours of continuous use.

Item: parameter

1.Monitor:10.1 inch IPS color record monitor

2.Function:Video record/audio/photo/electronic zoom/power display/ meter counter/keyboard input (support English)

3.TF Card: Memory Support maximum 128G TF card(16G TF card included)

4.512hz:Built in 512hz transmitter

5.Camera :Auto Self Leveling AHD 1080P

6.Camera : AHD 1080P

7. Quick photo: press the <key to take a photo.

8. Image Zoom : Press > key to zoom the image from 0 to 5 times.

9. Charger: AC100-240V DC12.6V

10.Battery: Luminal-cell arrester 4.5AH

11.continuous use time for battery: approximate 8h

12.investigation depth: 20M( selectable line length)

13.material: fiber tube with /high intensity

14.camera light source: 12 PCS LED with high while light(adjustable)

15.camera viewing angle: 145°

16.Lens Mirror Material : Sapphire

17.camera size/material: 23MM* 40MM /stainless steel

18.camera protective cover parts size/material:38MM* 28MM /plastic-steel

19.camera protective cover parts size/material:90MM* 28MM /plastic-steel with wheel

20.camera picture: color

21.Box Installation size: 520*369*248mm

22.Package size : 590*440*325mm

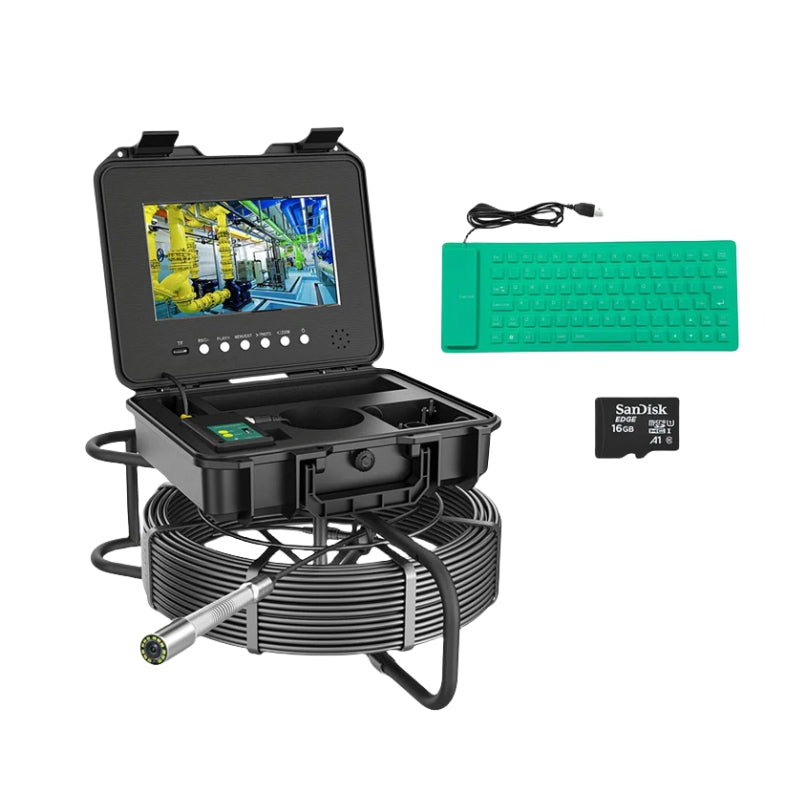

Package List:

1 *10.1inch IPS Monitor（DVR)

1 * Camera (Built in 512hz transmitter Auto Self Leveling )

1 * 16GB TF Card

1 * 20M (7MM Fiberglass Cable)

2 * Camera Proof Cover

1 * 4500mah Battery Box

2 * Charger

1 * Connection Cable

1 * Screw Driver

1 * User Manual (English)

Applications:

Blocked / slow draining plumbing.

Wall / wire inspection.

Home owners inspection.
