Name: CCTV Tester IP CVI Analog CCTV Camera Tester 4.0'TFT Monitor POE Supply Keypad T62 CCTV Equipment Test Device
Brand: VIDEOCAMERA(JZHTOP)
Price: 250.00 USD
Availability: InStock

CCTV Tester IP CVI Analog CCTV Camera Tester 4.0'TFT Monitor POE Supply Keypad T62 CCTV Equipment Test Device

$250.00 USD $300.00 USD

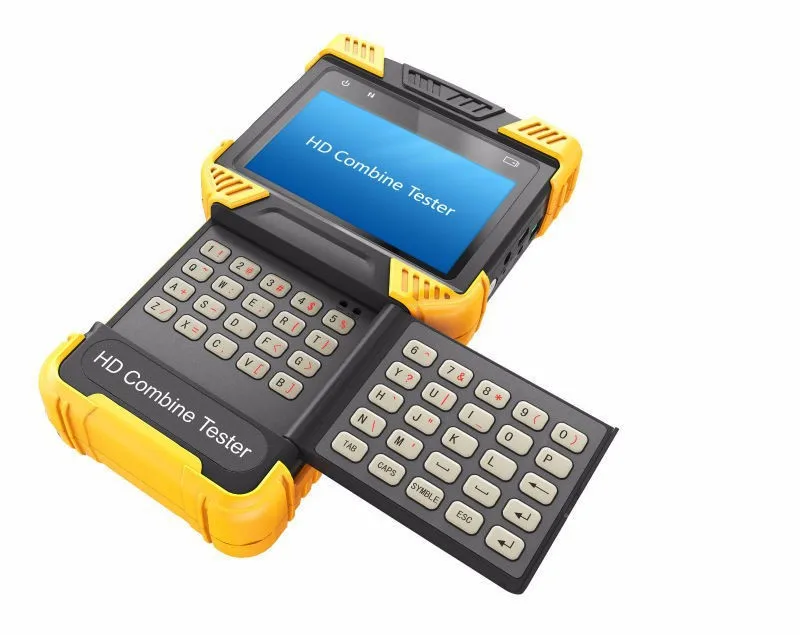

IP CVI Analog CCTV HD Combine Tester Model T62 POE Power Supply

With 4'TFT Keypad

CCTV TESTER

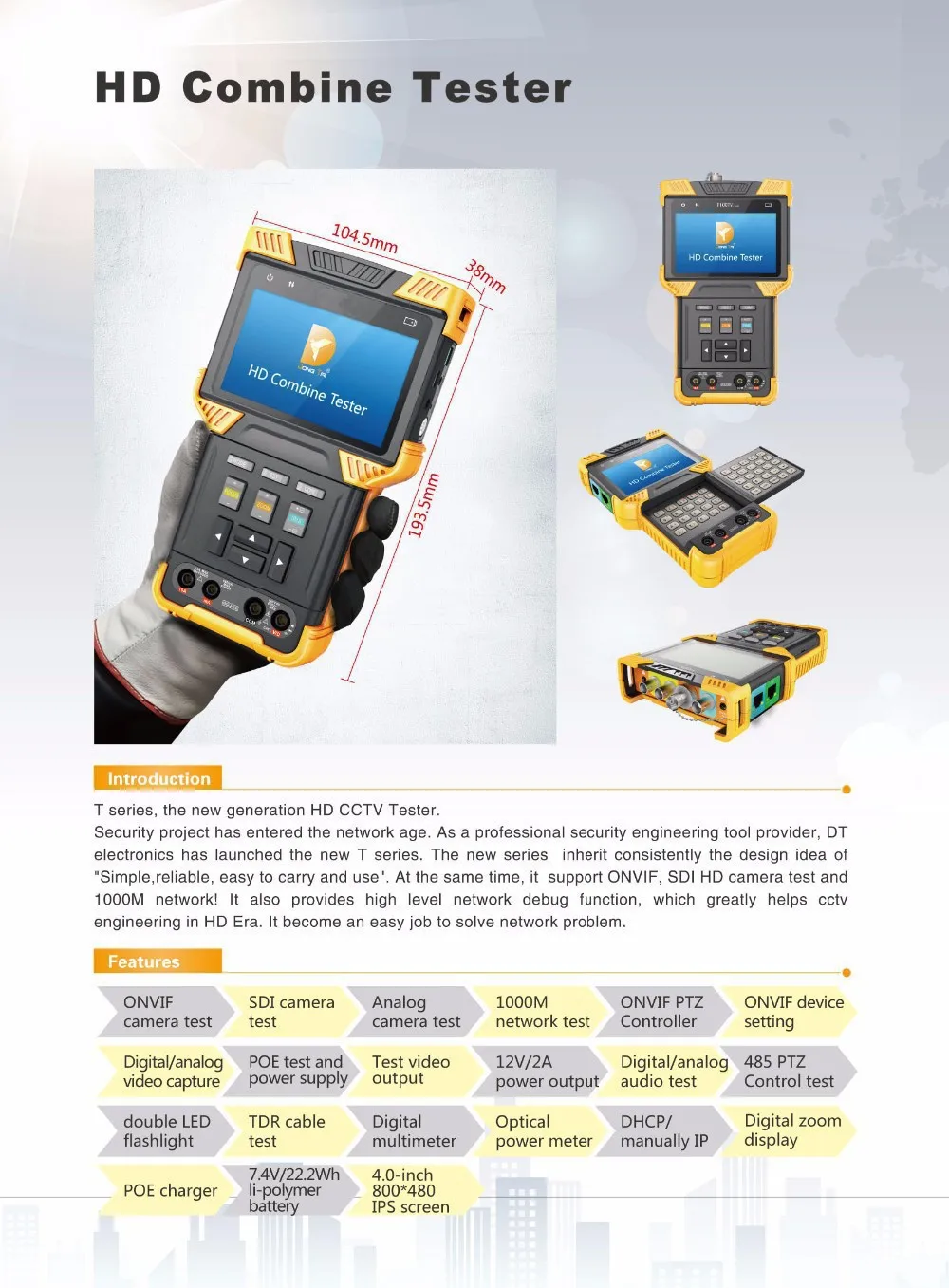

HTB1BM1DHFXXXXaPaXXXq6xXFXXXA

20140514154018_78785

Features:

English, Chinese and optional,for bulk,other languags are customized

4.0\'\' TFT-LCD, 800(RGB)x480

LED Lamp, easy to operate at night.

LCD screen brightness/contrast/color saturation adjustable

Automatically adapts and displays the video format of NTSC/PAL

10x zoom, video image can be magnified to view the details, easy to use

Video record and playback

Snapshot and save the current images as JPG file in the SD card

PING testing, test IP camera or other network devices ethernet port whether work normally, and the IP address whether right

IP address scan, quickly search the IP address for the connected IP camera and other network devices.

POE voltage measurement, test the PoE switchs voltage to IP cameras, wireless AP device and other PD devices

Device Port flicker, easy to find the connected PoE switch port by sending special signals, the connected PoE port will flicker at special frequency.

Link monitor; check the setting IP address whether occupied.

TDR break point and short- circuit measurement(BNC cable, network cable etc)

PTZ address scan, search up the ID of PTZ camera

Network cable and Telephone cable testing, display the sequence of connection and the NO of the LAN cable

Support RS485, Rate 150~19200bps adjustable

Multi-protocol. Support more than thirty PTZ protocols. Such as PELCO-P, PELCO-D, SUMSUNG

PTZ protocol analysis, control protocol command displays to check RS485 transmission whether is normal, easy to find the fault device

PTZ control. Pan/tilts the P/T units, zooms in/out the lens, adjusts the focus, aperture and sets and the preset position

DC12V 2A power output for camera

Audio input test, test the audio signal from pickup devices

Visual fault locator, to test fibers bending and breakage

Lithium Ion Polymer Battery. The device employs advanced power control and protection circuit. The device is high power-efficient, energy saving and environment protection. It can last 10 hours for normal use after charging for 3-4 hours.

Specification:

Model	HD Combine Tester T62

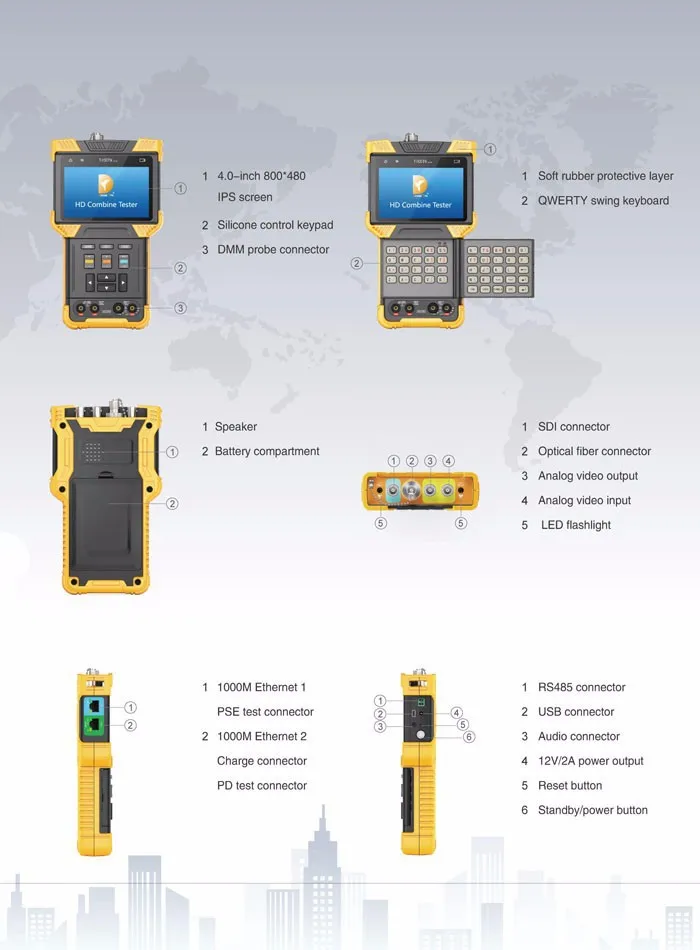

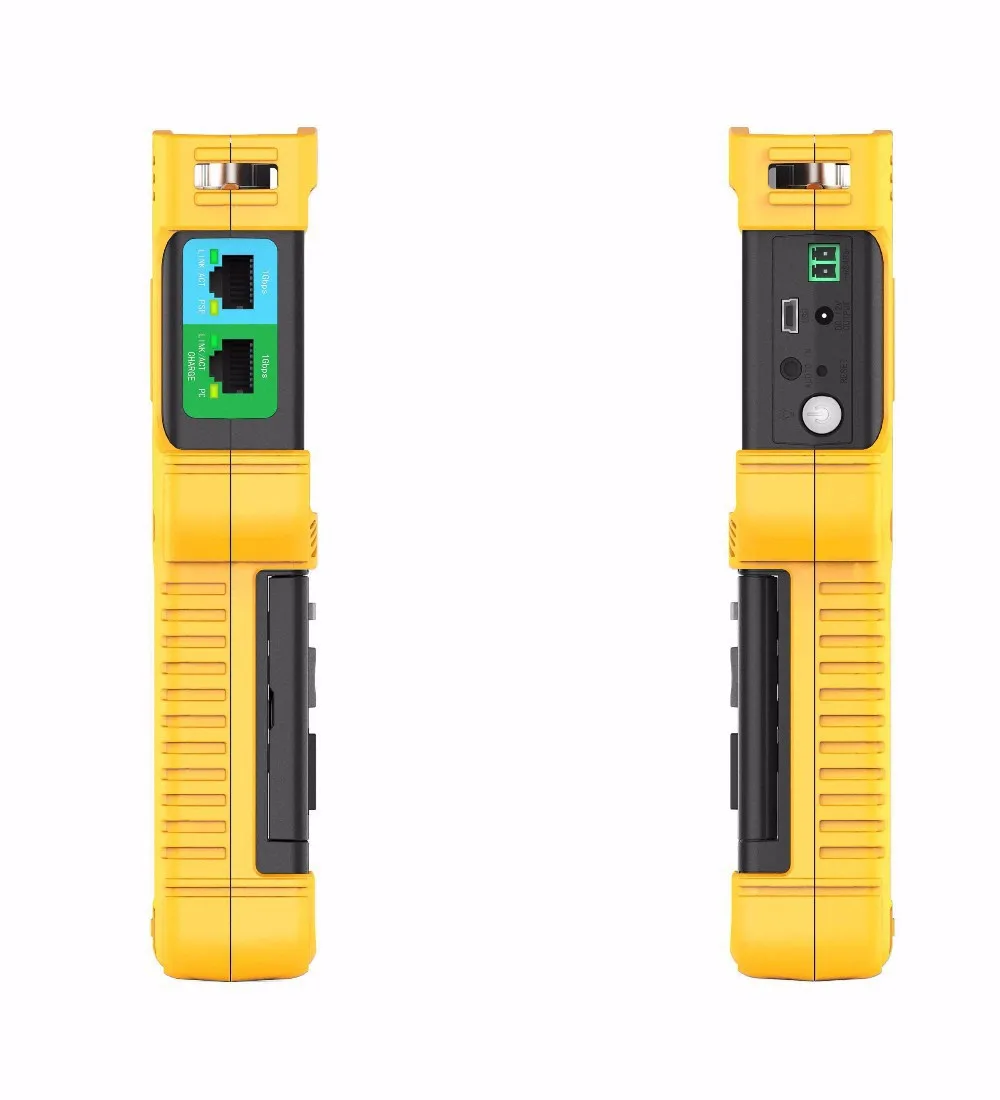

Physical Port
Network Port	2*10/100/1000M RJ45 port, support switch mode

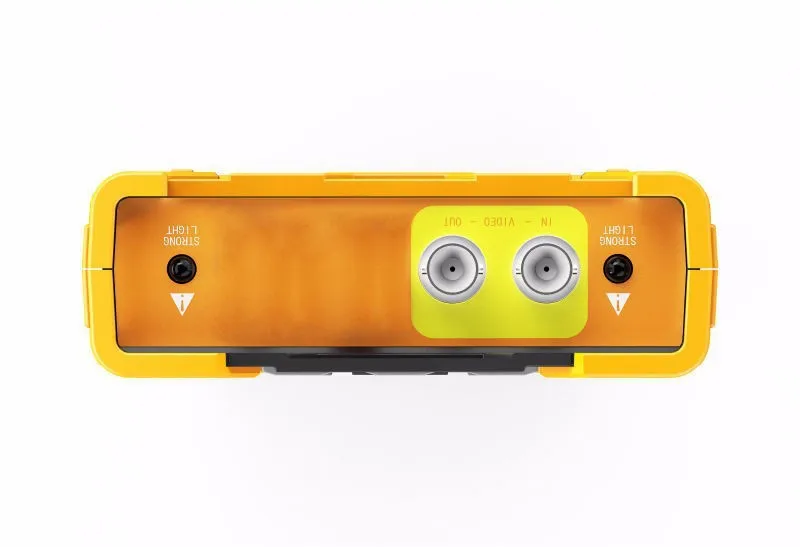

Function Port	2BNC port (Video IN and Video OUT), 1RS485, 1Audio In, 1USB, 1*Reset
IPC Test
Protocol	ONVIF 2.4.1, RTSP, RTP

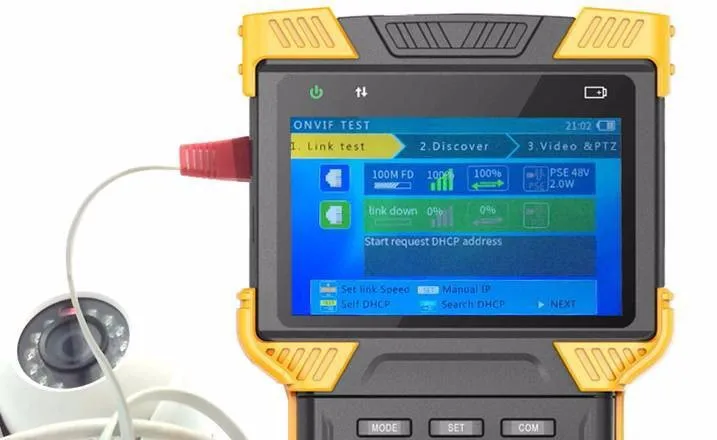

Ethernet Test	10/100/1000M Ethernet link test, loop detect, Ethernet traffic flow monitor, link quality test
IP Configuration	static IP/ DHCP client/ DHCP server

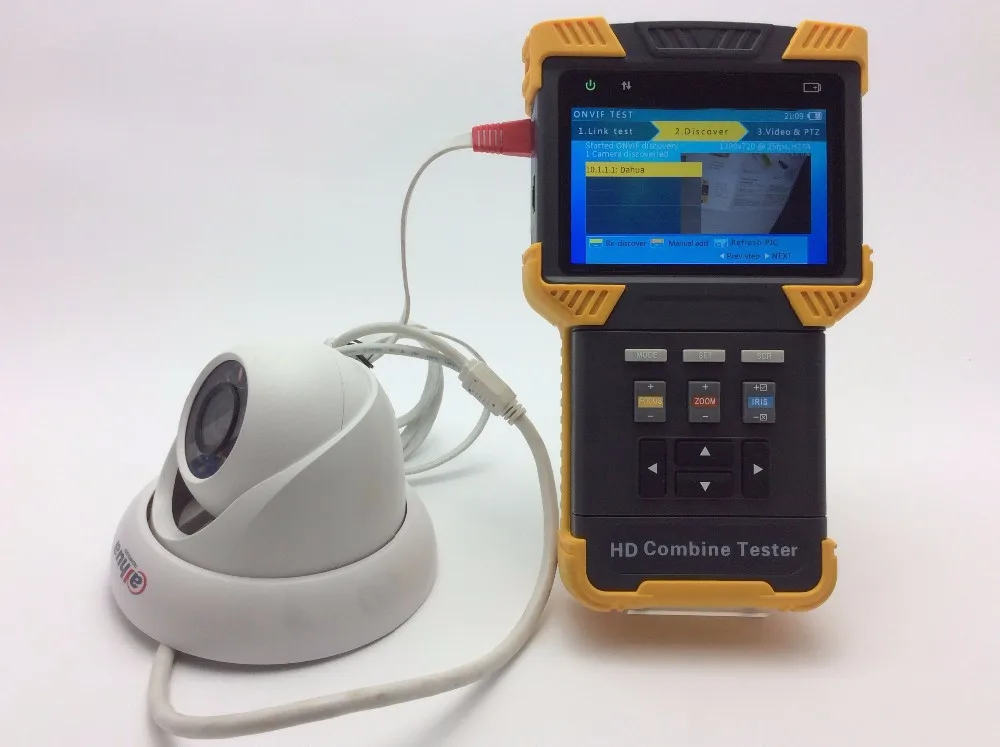

IPC Test	Discover camera, real time video, camera configuration, PTZ control, audio test, full screen preview and 8x digital zoom, snapshot, record video(recording original data stream)
HDCVI & Analog Test
SD signal Format	NTSC, PAL
HD video signal	HDCVI*
Resolution	D1, 720P, 1080P
Signal Level	1Vpp
Camera Test	Real time video, PTZ control, audio test, full screen preview and 8x digital zoom, snapshot, record video(H.264)
HDCVI OSD	Camera configuration
PTZ Control
Protocol	More than 30 protocols including Dahua, Pelco-D/P, Samsung, Panasonic, Lilin, Yaan etc.
Baud Rate	150, 300, 600, 1200, 2400, 4800, 9600, 19200bps
Detection
TDR detection*	0~150m net cable detection, resolution 1m
POE test	PD test
POE test	PSE test
Network Analyze	Sniff, list subnet, ping
Analog Video Generator	Generate PAL/ NTSC video signal of various test pattern
Record Playback	Support local playback
System Specification
Screen	4.0 inch TFT 800RGB480(WVGA) resolution, 16.7M color, backlight brightness adjustable

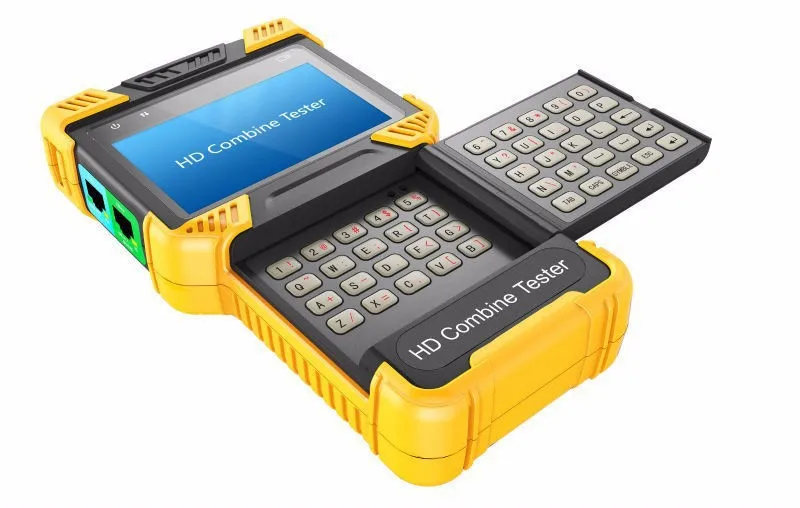

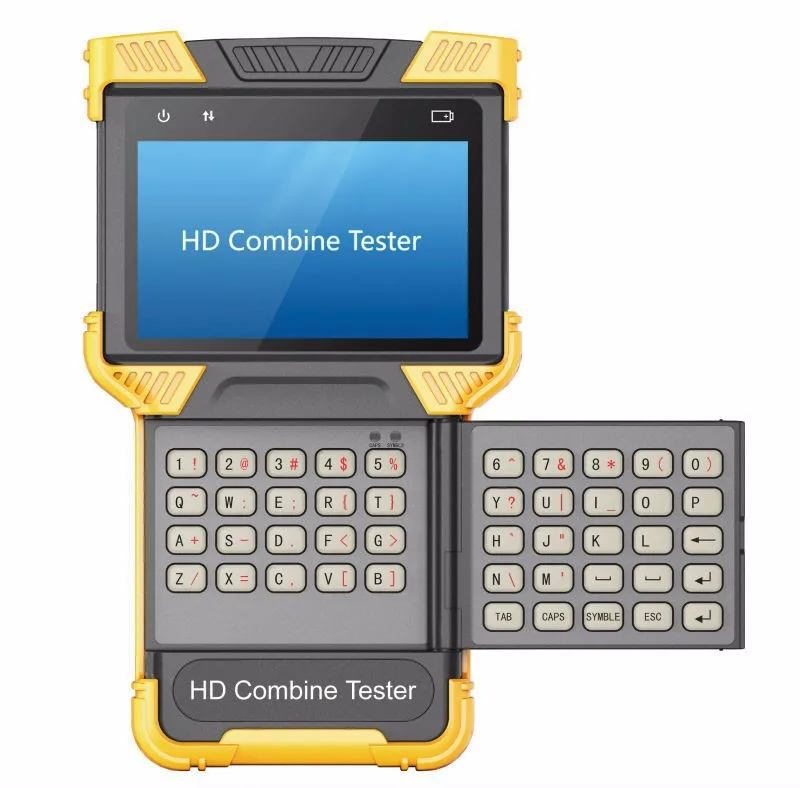

Operation Method	Power key, 12 control keys, QWERTY flip keyboard with 45 keys
Auto Power Off	Disable/ 5~60 minutes
Keyboard Tone	Enable/ Disable
Upgrade	Support online upgrade
Power
Power Input	POE source or POE injector
POE Injector	Input AC100~230V 50~60Hz, output 48V/15w
Battery	Dedicate battery, user replaceable, 7.4V lithium-ion polymer battery, capacity 22.2Wh
Power Output	POE (802.3af, 802.3at)
	DC12V 2A
Time	Charging time 34 hours, working time 10 hours
Other

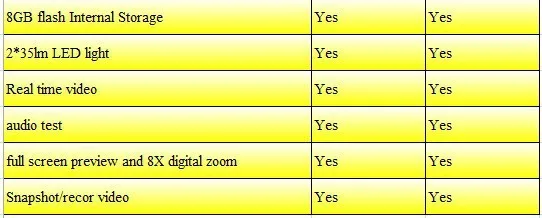

Internal Storage	8GB flash
LED Light	2*35lm LED light
Working Temperature	-10~+55
Working Humidity	30%~90%
Dimensions	190x113x37mm
Weight	1.6kg
