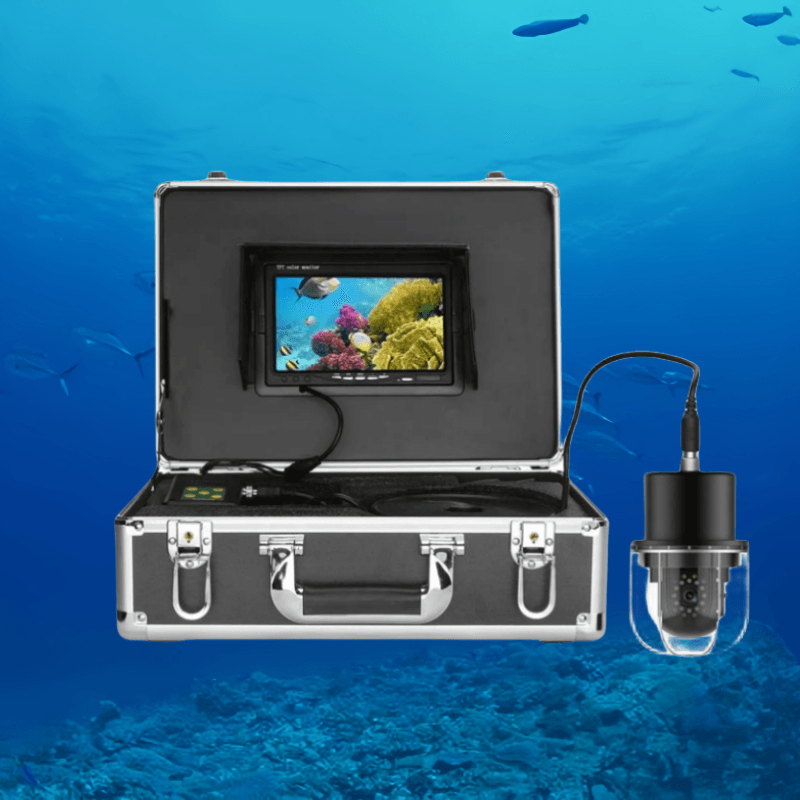

Underwater Fishing Camera 20LEDs 360 Rotation Panoramic Dome Rotating Fish Finder 20M 50M 100M Cable DVR 7'LCD

7 Inch DVR Recorder Underwater Fishing Video Camera Fish Finder IP68 Waterproof 20 LEDs 360 Degree Rotating Dome Rotating Panoramic viewing Camera

Fishing Camera Description:

This product you are watching now is the latest popular, fashional, good looking and convenient Underwater Video Camera System. It not only has a large and color screen, but also has a height definition camera which has HD CCD 800TV lines.

total 20pcs：6pcs white LED + 12pcs IR LED + 2pcs blue LED (for luring fish);

LED switch mode: only white LED on、only IR LED on、only blue LED on、all LED on、all LED off,obtain more better quality image,this underwater monitor system also has the DVR function.

Besides, this item comes with 8GB TF card and this system maximally support 32 GB TF card.

Typical applications are:

1. Underwater exploration

2. Ocean/Ice/Lake fishing

3. Swimming/diving/snorkeling

4. Well/pipe inspection

Key features:

1. High-quality CCD color video camera with 1/3" HD CCD

2. Control Box: Vertical Rotate 0-180 by manually; Horizontal rotate 0-360 by Auto or manually

3.5 speed adjustment from fast to slow for different applications

4. All LEDS can be turned off/on for best image quality under different

5.20m heavy-duty gauge anti-corrosion cable

6. Aluminum box Size: 375*265*135(MM)

Monitor:

Display:7" TFT LCD(16:9)

Resolution: 1024(H)X600(V)

Power supply: DC12V

Battery Box:

1.Charger : AC100V-240VAC DC12.6V 1000MA

2.Battery: Lithium battery 4500MA

3.Battery Mode: Support

4.Recharge Time: above 5hous

5.Battery Working Time: about 8-9hous

Camera specifications

1. Image sensor: 1/3" HD color CCD

2. Horizontal resolution: 800 TVL

3. Lens focus size: 3.6mm

4. Angle of view: 92

5. LED：total 20pcs：6pcs white LED + 12pcs IR LED + 2pcs blue LED (for luring fish); LED switch mode: only white LED on、only IR LED on、only blue LED on、all LED on、all LED off

7. Rotating Angle: Vertical rotation 0-180 degree; Horizontal rotating0-360 degree

8. Underwater vision distance: 1-3m ,depending on clarity of water

9. Current consumption: 400mA

10. Body construction: Metal + ABS plastic

11. Waterproof level: IP68

12. Power supply: 12V DC

13.Camera Size: 83*125(MM)

Item Includes:

1. 1 x 7" inch Color TFT LCD Monitor

2. 1 x 8G TF card

3. 1 x Underwater Camera

4. 1 x 20M Cable

5. 1 x DC 12V Battery Charger

6. 1 x Remote Control box

7. 1 x Aluminum box

Cable length option:

• 20m/50m/100m option
