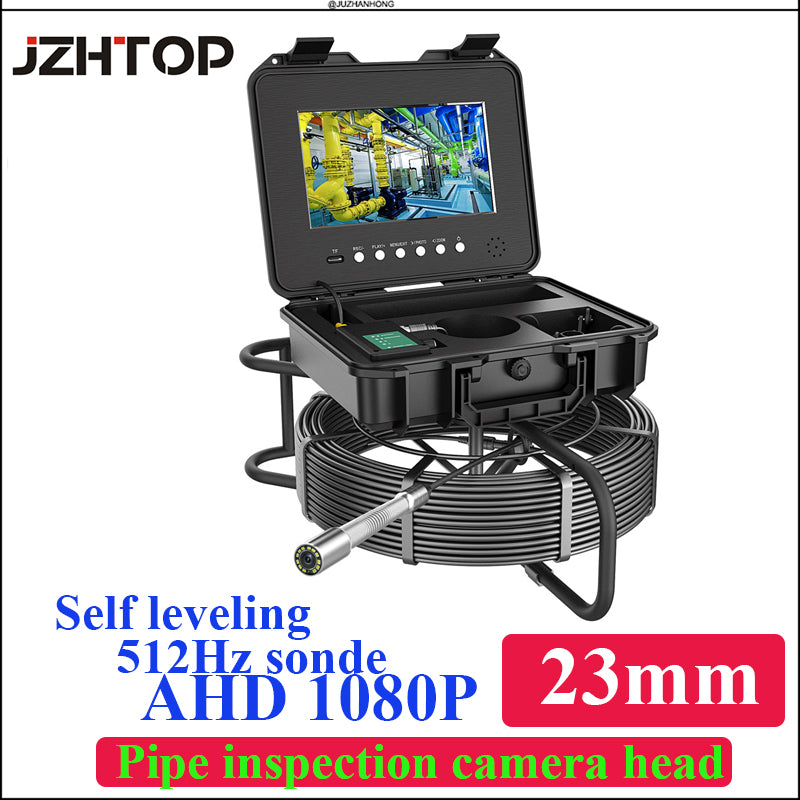

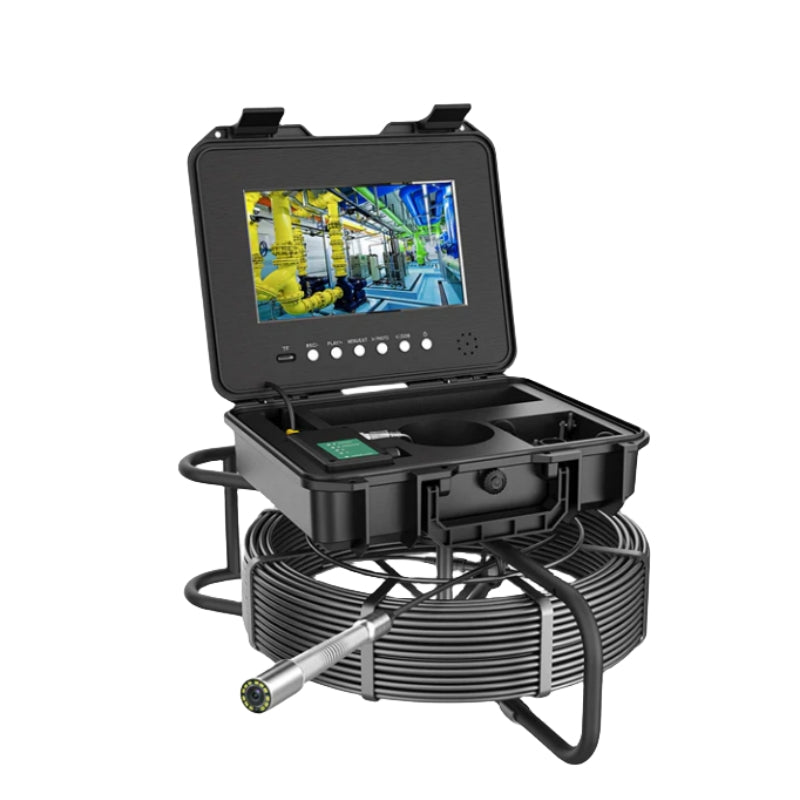

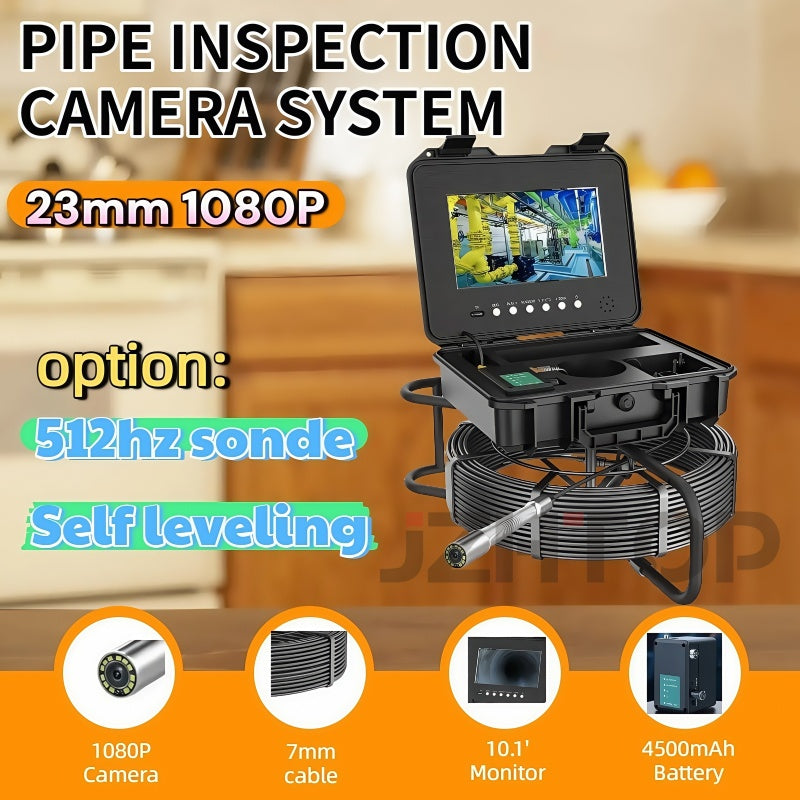

AHD 1080P 23mm Pipe Inspection Camera System Drain Sewer Endoscope Video Borescope 512hz Sonde Self Leveling 10.1'LCD 7mm Cable

10.1" IPS Pipe Sewer Drain Inspection Camera 512HZ Locator DVR

AHD 1080P Screen Diameter 7MM Cable Video+Audio Recording 5X Image Enlarge

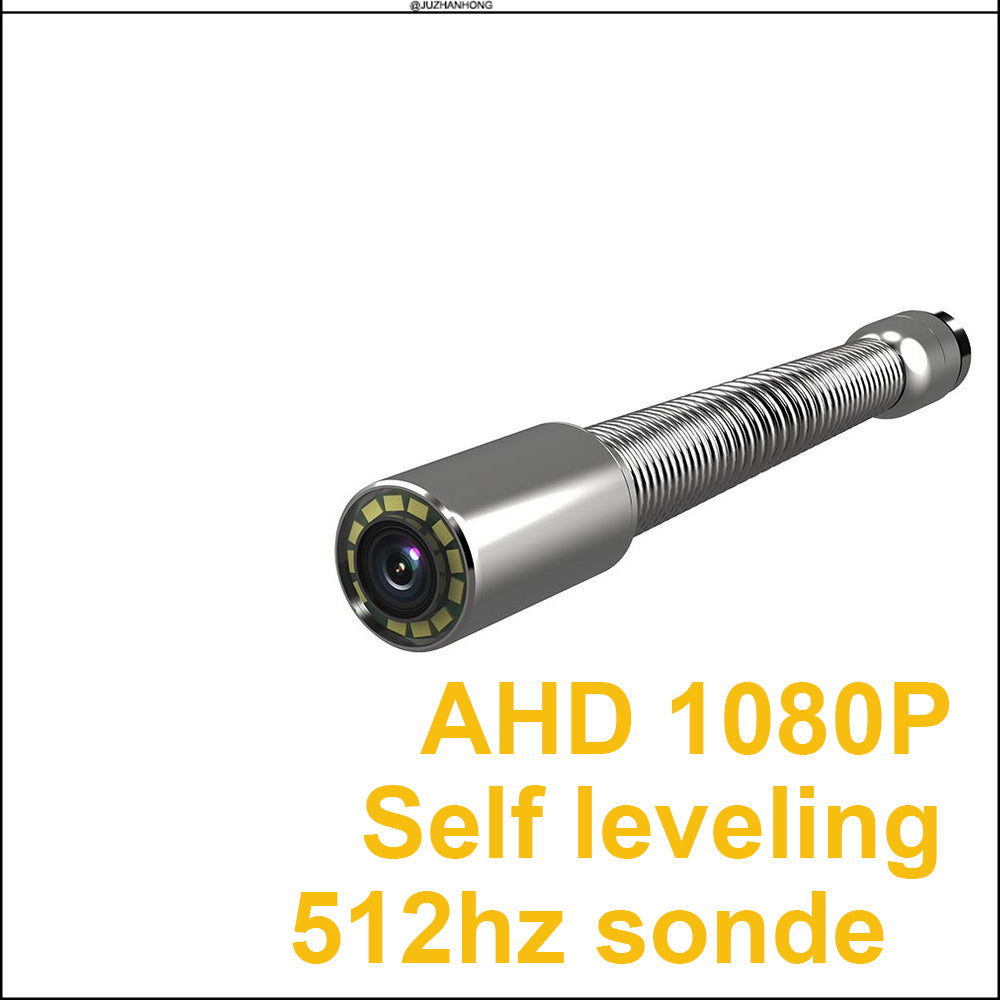

About the 23mm camera head there has two choices;

a: 23mm 1080p hd camera head;

b: 23mm 1080p self leveling 512hz sonde caemra head;

Video + Audio + 5X Image Enlarge:

Pipeline Wall Sewer Inspection Snake Camera built-in TF Card slot,16GB TF card included,it is avialiable to view live video and save video recording and photos and audio record.You can record the inspections and playback via the pipe system.（DVR Edition Video Format :MP4 Photo format :JPG)+ZOOM to zoom in or zoom out 0-5 times

MONITOR&CABLE：

Professional Drain Pipe/Sewer Pipeline Inspection Camera is designed with a 10.1 inches color IPS LCD monitor for outdoor inspections.The material of wire is fiberglass rod(diameter:7MM),anti-corrosion/cold/tensile.

DVR Recording Function：

Pipeline Wall Sewer Inspection Snake Camera built-in TF Card slot,16GB SD card included,it is avialiable to view live video and save video recording and photos and audio record.You can record the inspections and playback via the pipe system.（DVR Edition Video Format :MP4 Photo format :JPG)

512HZ TRANSMITTER:

This endoscope camera has a built-in 512 hertz transmitter that helps to easily detect any blockage or area of interest. This greatly helps save time from having to dig and locate the problem. The sonde transmits a 512Hz signal that can be picked up with any compatible locator, allowing you to pinpoint the transmitter,sposition underground.

PORTABLE CARRY CASE&LONG BATTERY：

Pipe Wall Sewer Inspection Snake Camera Kit with heavy duty padded aluminum case stores all contents, convenient to carry around. 12V 4500mAh Li-battery included supports approximate 8 hours of continuous use.

Item: parameter

1.Monitor:10.1 inch IPS color record monitor

2.TF Card: Memory Support maximum 128G SD card(16G SD card included)

3.Camera : AHD 1080P

4.512hz:Built in 512hz transmitter

5. Quick photo: press the <key to take a photo.

6. Image Zoom : Press > key to zoom the image from 0 to 5 times.

7. Charger: AC100-240V DC12.6V

8.Battery: Luminal-cell arrester 4.5AH

9.continuous use time for battery: approximate 8h

10.investigation depth: 30M( selectable line length)

11.material: fiber tube with /high intensity

12.camera light source: 12 PCS LED with high while light(adjustable)

13.camera viewing angle: 145°

14.Lens Mirror Material : Sapphire

15.camera size/material: 23MM* 40MM /stainless steel

16.camera protective cover parts size/material:38MM* 28MM /plastic-steel

17.camera protective cover parts size/material:90MM* 28MM /plastic-steel with wheel

18.camera picture: color

19.Box Installation size: 520*369*248mm

20.Package size : 590*440*325mm

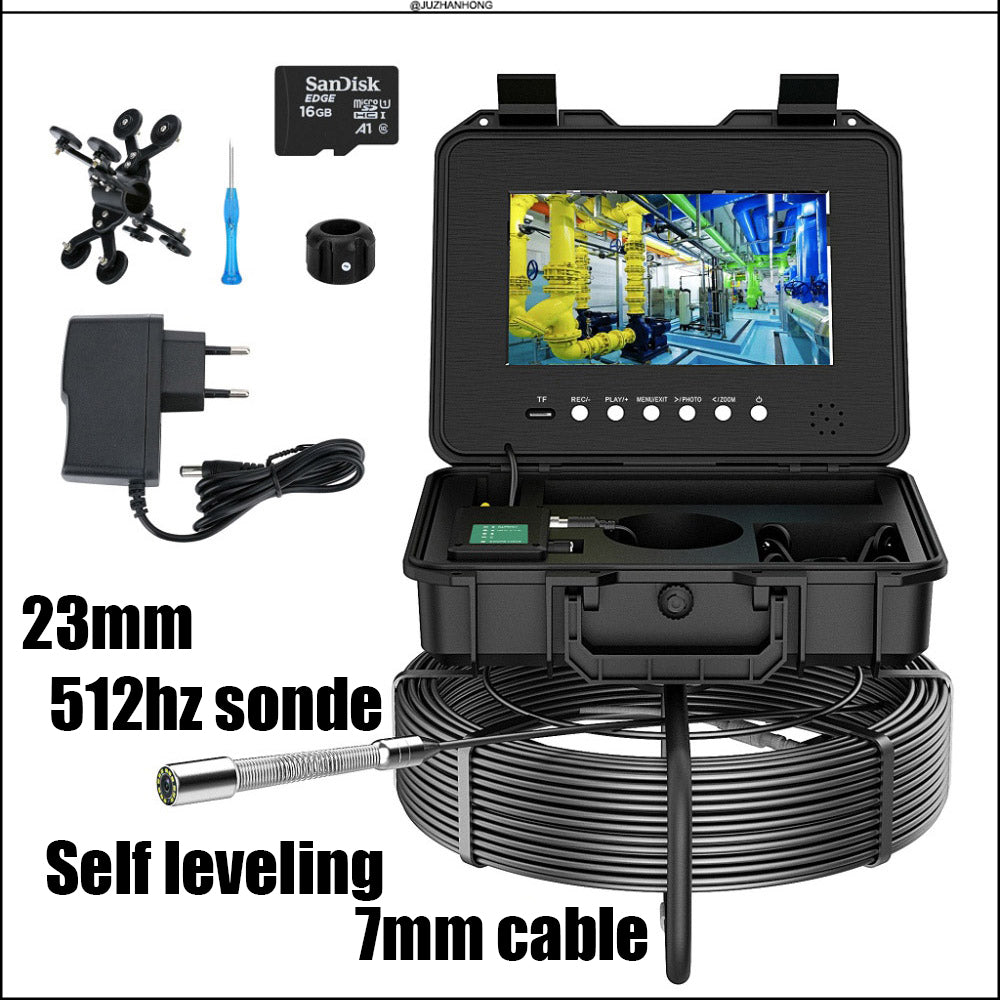

Package List:

1 *10.1inch IPS Monitor（DVR)

1 * Camera (Built in 512hz transmitter)

1 * 16GB SD Card

1 * 30M Fiberglass Cable(Diameter:7MM)

2 * Camera Proof Cover

1 * 4500mah Battery Box

2 * Charger

1 * Connection Cable

1 * Screw Driver

1 * User Manual (English)

Applications:

Blocked / slow draining plumbing.

Wall / wire inspection.

Home owners inspection.
