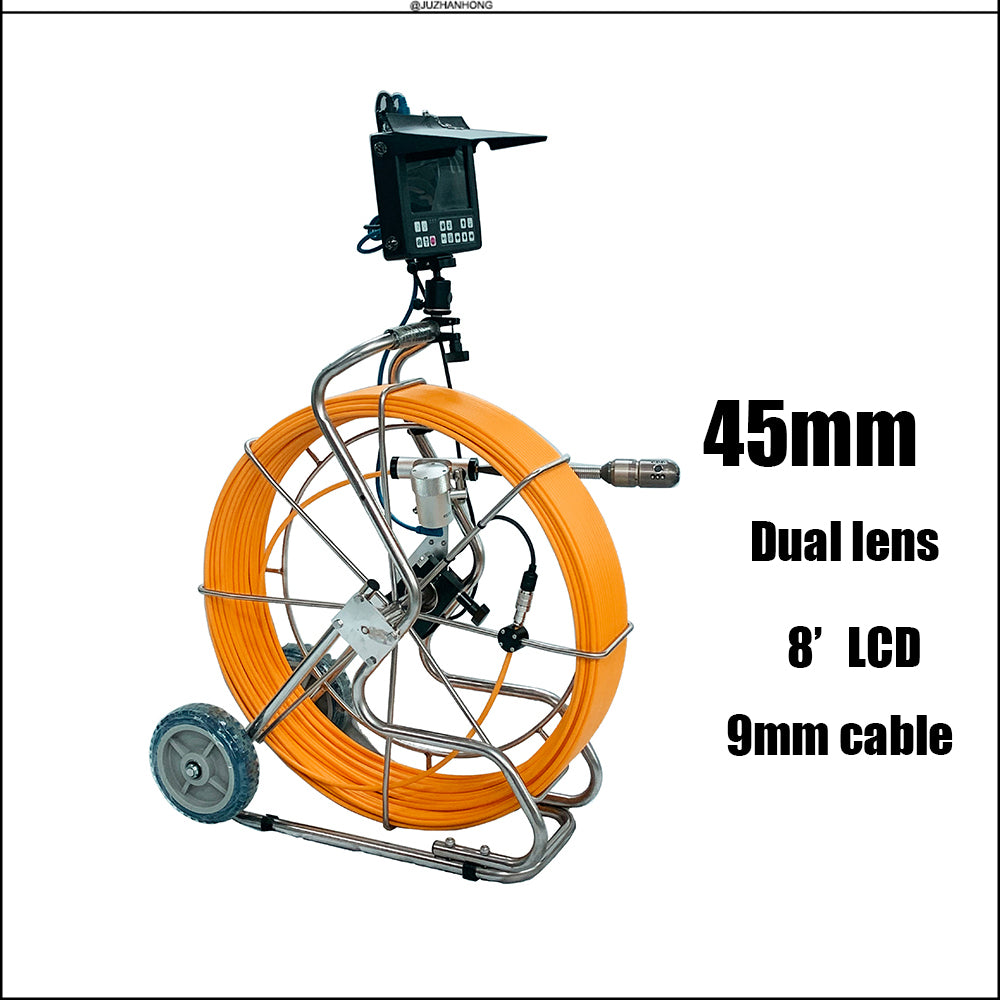

45mm Pan Tilt Rotate Dual Camera Lens Pipe Drain Sewer Inspection Camera System 8'LCD Video Endoscope Borescope 9mm Cable

45mm rotation(Side/Front) dual view inspection camera

for sewer drain pipe 60mt to 120mt cable inspection camera with 8inch screen

AHD Dual view rotatry pipe inspection camera

1. Model No.:JV8-3245DU

2. Screen Size:8 inch LCD IPS Screen, 1280*720 resolution

3. Camera Size:1/3 CMOS,1.3MP pixel AHD 45mm dual camera head

4. Cable Reel:9mm Fiberglass rod push cable ＆reel

5. Power Supply:12V 7000mA Recharge Li-ion Battery

Part1: Dia.45mm side/ front dual view camera head

* Camera size 45mm x 107mm
* Waterproof IP68 up to 3 bar
* View range Horizontal:101°
* Pan 360° rotate endless
* 6pcs high light LED (down view)
* 6pcs high light LED (side view)
* Detachable connection to Cable Reel
* Lens window sapphire glass
* Built-in 512Hz transmitter optional

Part2: DVR control unit with Color waterproof screen

*8"HD IPS LCD Screen, 1280X720 resolution
*16:9 display model
*HD DVR SYSTEM with recording 720P video
*DVR recording system with AVI video format
*Waterproof LCD panel and button
*USB wireless Keyboard real time typewriting
* USB port to connect storage device ( 16G USB flash disk)
* Built-in 7000mA rechargeable Li-ion Battery Pack
*Battery level indicator
* Sunshade is included
* Box size 23x20x5cm
*AC 110V-240V 1.5A power charger
*Charging time 7 hours,working time about 4 hours
*Can fix on the cable reel, can be handhold, can hang on the neck(optional)

Part 3: 9mm cable reel with meter counter

* Fiberglass push rod cable
* Cable diameter 9mm
* Cable length 60m to 120m
* Reel size L70*W28*H84cm
* Reel brake available
* Pin cap to protect the cable connector
* Updated digital meter counter,error rate less than 1%

More detail pictures for the system
