Underwater Video Fishing Camera 7' Monitor DVR Recording Fishing Inspection Camera Fish Finder Waterproof Night Vision

Underwater Video Fishing Camera 7' Monitor DVR Recording Fishing Inspection Camera Fish Finder Waterproof Night Vision

Regular price $410.00 USD
Regular price $500.00 USD Sale price $410.00 USD
Sale Sold out
Shipping calculated at checkout.

50m cable underwater fishing video inspection camera fishing camera fish finder

360 rotation waterproof camera

HTB1Y8xsSVXXXXXkXXXXq6xXFXXX3



Underwater camera is designed to connect to your TV, VCR, LCD TV or some Digital Video Camera

/Camcorders with an A/V Input.







50M 360 degree rotation Motorize fishing camera with 1/3  CCD700TVL LED night vision camera with SD card DVR

Parameter:

  • High-resolution CCD PAL colour video camera
  • Ten white LED lights with two brightness levels
  • Eight IR LED lights
  • Remote-control 360 camera pan head
  • Camera waterproof to 60 metres
  • 50 metre cable
  • Seven-inch TFT LCD colour monitor
  • Wireless remote panning and monitor control
  • Video-out RCA port
  • Video-in RCA port
  • Rechargeable 12V battery
  • Australian charger adaptor
  • Durable waterproof carry bag
  • 12-month Australian warranty



icon1 ENJOY IN-DEPTH VIDEO COVERAGE
Waterproof down to 60 metres, your Mytopia camera lets you view the finest of details of the hidden depths on a high-resolution TFT LCD monitor without even getting your toes wet.

icon2

LET THERE BE LIGHT
With ten powerful white LED lights, you can see at night and in the murkiest of depths - and the additional eight IR LEDs provide lighting that isn\'t even visible to most animals, making for completely candid video capture. What\'s more, you control the lighting from where you sit.
icon3 SEE THE UNSEEN
Compact and manageable, your Mytopia camera can go where no man can go. Lower it into pipes, drains and well shafts, and look for blockages - or those long-lost car keys.


Feature of LCD:
  • 1,7" LCD colour TFT monitor(with sun-visor for bright outside environment)
  • 2,Monitor Visible Angle: 65 degree from left to Right side,40 / 65 degree from top to bottom.
  • 3,Video Signal Output: 1V(p-p) Composite Video Signal at 75ohm Termination
  • 4,Video Input: 1Vp-p 75
  • 5,Horizontal Resolution: 420TV lines
  • 6,Storage Temperature: -20 ~ 65C
  • 7,Working Temperature: -10~50C
  • 8,Power requirement: DC 12V
  • 9,Rechargeable battery
  • 10,Packaging Material: High Impact ABS Plastic
  • 11,Dimension: 189 (W) x 122 (H) x 24 (D)






Typical applications are:

1>derwater exploration

2>ean/Ice/Lake fishing

3>imming/diving/snorkeling

4>ll/pipe inspection

QQ20170812174122

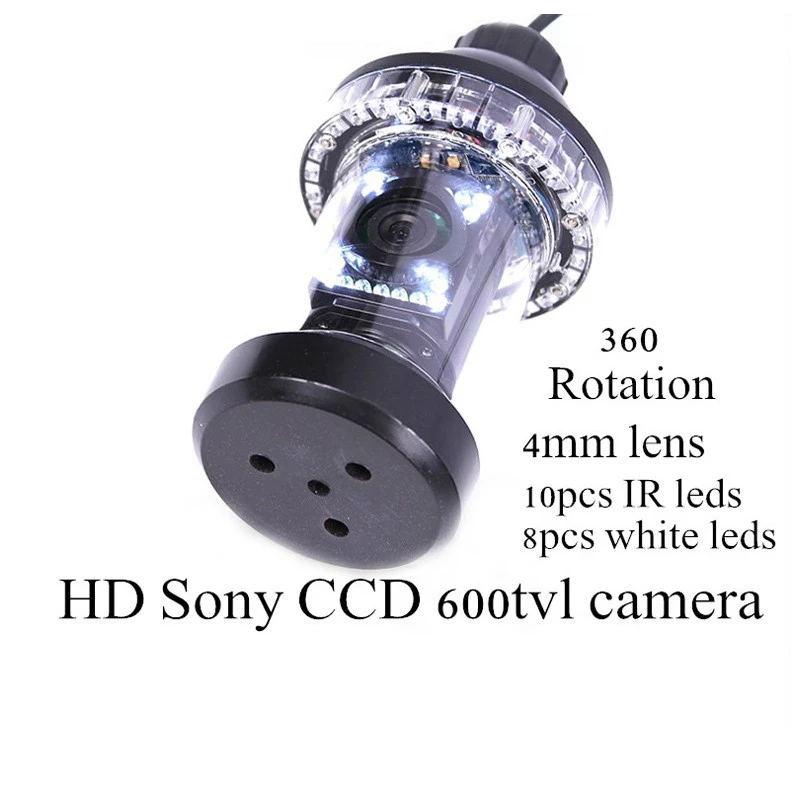

Camera specifications



  • Image sensor: 1/3" Sony color CCD 700TVL
  • Color system: PAL/NTSC both available
  • Effective pixels: 628x582(PAL)/628x512(NTSC)
  • Horizontal resolution: 700TVL
  • Horizontal Sync. (KHz): 15.625/15.737
  • Vertical Sync, frequency (Hz): 50/60 Hz
  • Electronic shutter speed: 1/100 - 1/1000,000
  • While balance: auto
  • AGC: auto

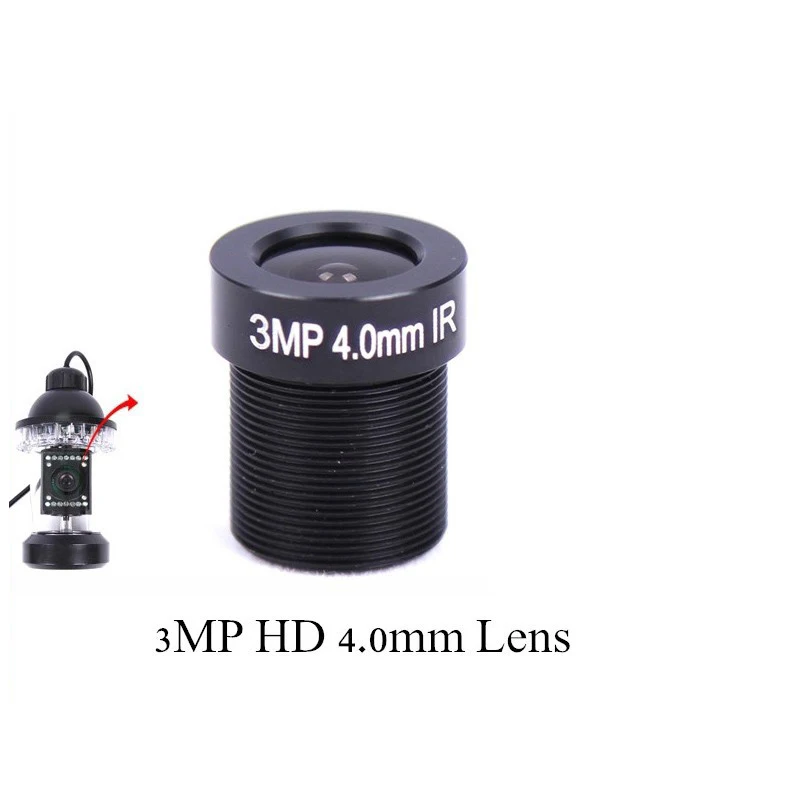

  • Lens focus size: 3.6mm
  • Angle of view: 92 degree
  • S/N ratio: > 45dB
  • Gama consumption: 0.45
  • Number white (illuminated) LEDs: 8 pcs
  • Number os IR LEDs: 10 pcs IR)
  • Head pan movement: 0-360continuous or manually selectable via remote controller
  • Underwater vision distance: 3-6m (10-18ft), depending on clarity of water
  • Video output: 1Vp-p/75Ohm
  • Current consumption: 400mA
  • Body construction: Metal + ABS plastic
  • Waterproof level: IP68
  • Submerging depth range: Max. 200M
  • Power supply: 12V DC

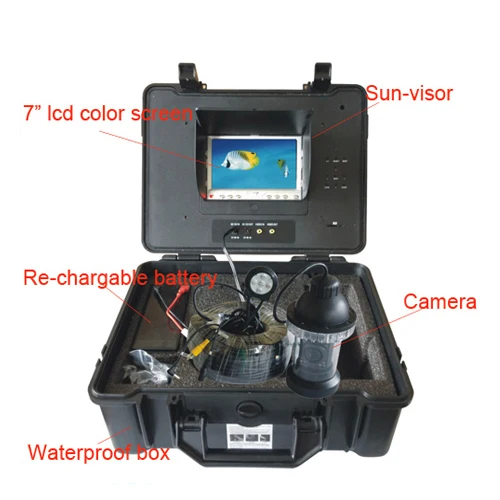

Package Includes

  • (1) Underwater Color Camera with 50m Video Cable
  • (2) Box+7:Screen Monitor
  • (3) battery charger
  • (4)with DVR



WARM TIPS:

For sake of security,factory use rechargeable lithium battery to replace lead battery.

Please be noted.buyer friends.

QQ20171121113420



HTB1q8.QHFXXXXbtXXXXq6xXFXXXm

HTB1N9ExHFXXXXaVaXXXq6xXFXXXs
HTB10RITHFXXXXX5XXXXq6xXFXXXj
HTB10T7RHFXXXXaPXXXXq6xXFXXXA
HTB1uzcQHFXXXXbdXXXXq6xXFXXXI
HTB1uw3DHFXXXXXcaXXXq6xXFXXXi



Highlights:

  • 360 rotation view remote control OSD

  • Sony CDD Sensor Good Night Vision even in the deep water

  • The color CCD camera can emit a bright white light, so that it can be used to observe what`s happening under the water.

  • With this underwater camera you will easily know the kind and amount of the fish in the water.

  • Use it to view and improve your swimming techniques.

  • This camera can also be used to view areas that can not be easily viewed by the eye above water (down in holes,in behind walls, etc.)

  • Use it as an ordinary CCTV camera.

  • It is an amazing camera!! Get one for your personal use!

  • Underwater camera is designed to connect to your TV, VCR, LCD TV or some Digital Video Camera/Camcorders with an A/V Input.



 Features of Camera


  1. High-quality CCD color video camera
  2. Wired controller pan head for 0~360 degree all direction view
  3. 7 Speed adjustment from fast to slow for different applications
  4. 12pcs white LED with two level brightness adjustment
  5. All LEDs can be turned off /on for best imae quality under different operation environment
  6. Waterproof camera body with ABS housing
  7. 20M-200M heavy-duty gauge anti-corrosion cable
  8. Operation tempture: -20 to 75
  9. Sotrage tempture: -40 to 85



Specification of Camera



Type

Color CCD 1/3 sony

Effective pixel

628*582(PAL), 628*512(NTSC)

Horizontal resolution

700TVL

Horizontal Sync.

15.625/15.737

Frequency(Hz)

50/60Hz

Electronic shutter

1/100-1/1000,000

While balance

Auto

White or IR LEDs

12pcs

Waterproof

IP68

System

PAL/NTSC

View angle

0~ 360 degree

Cable length

50M

Power supply

12VDC





QQ20171120182607



Application

Our clients show their harvest on facebook.Love life !





Swing Pool underwater monitoring !

<can install the camera in the swing pool,make sure the safety of children/elder>

Cg-4WFKdaU2IFniAAASqyzzxk_8AAN4NAMDot4ABKrj402

a4430526_s

UT8LWOLXXXbXXagOFbXP

UT8y2aLXf4XXXagOFbXY

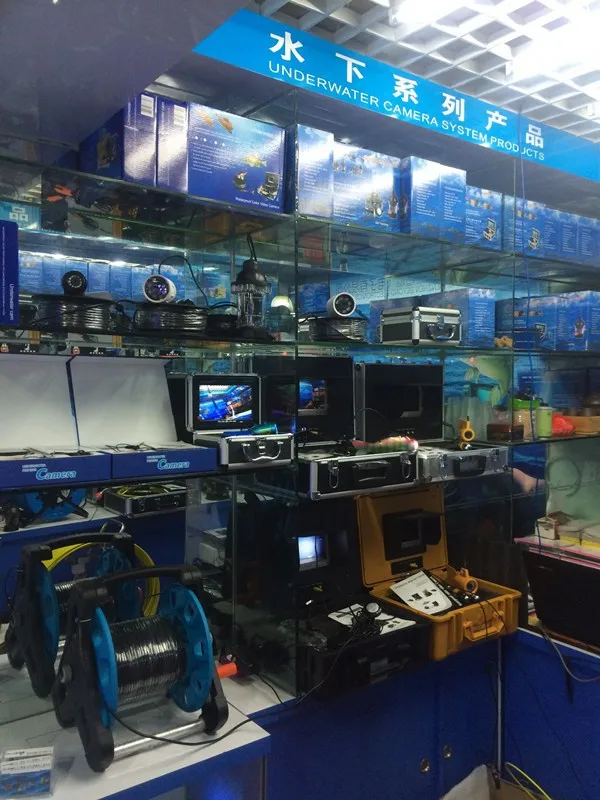

Real store show located in Huaqiang North,Shenzhen,China






Certification(MSDS/36.8 Reports)

  111

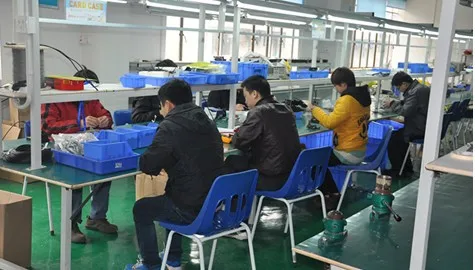

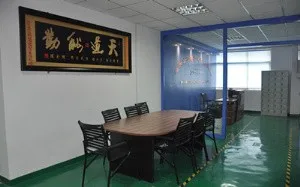

Parts/Office Show:

1361042452

1361042468 1361042485

1361043084 1361043095

Bulk counter loading:

bulk shipping

Warehouse material part show:





HTB1KOO1KFXXXXbXXXXXq6xXFXXXO
