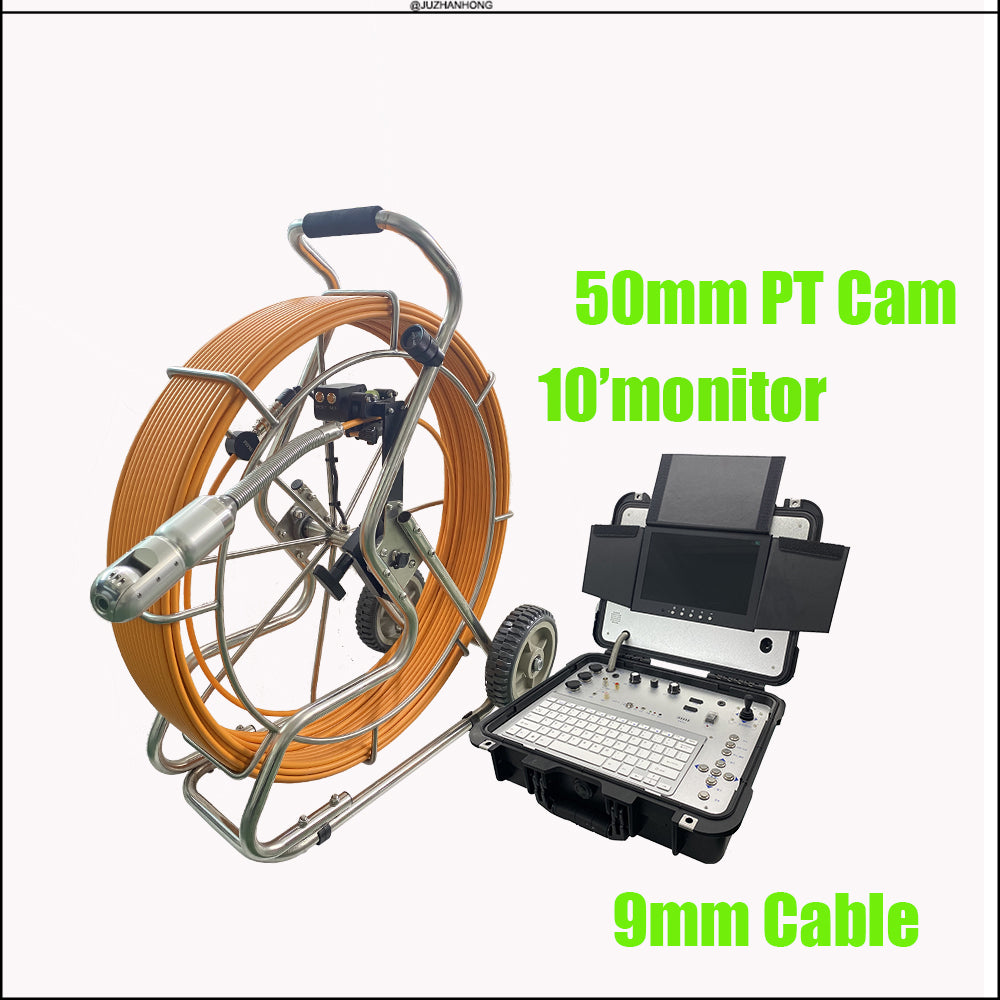

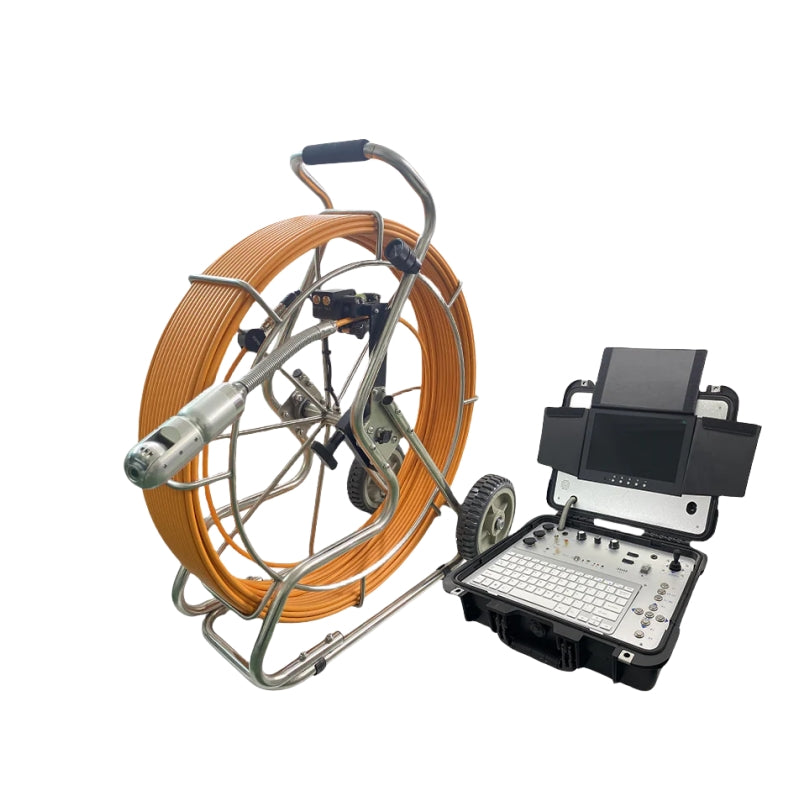

AHD 50mm Pan Tilt Rotate Pipe Inspection Camera System 360 View Drain Video Endoscope Borescope 10inch Monitor Meter Counter DVR

AHD 50mm Pan Tilt Rotate Pipe Inspection Camera System 360 View Drain Video Endoscope Borescope 10inch Monitor Meter Counter DVR

Regular price $3,700.00 USD
Regular price $3,850.00 USD Sale price $3,700.00 USD
Sale Sold out
Shipping calculated at checkout.

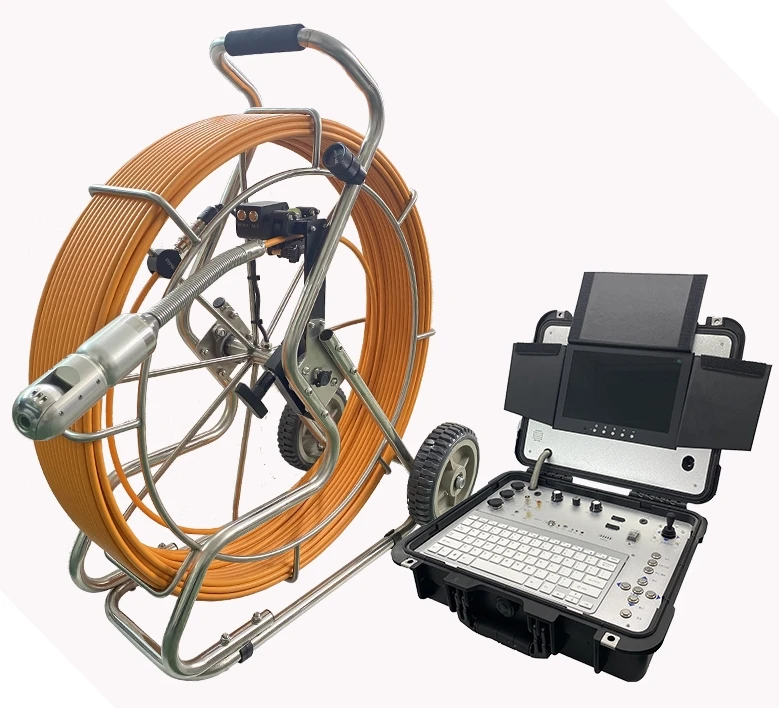

360 degree rotation AHD sewer pipe inspection camera with 60m /80m/ 120m

fiberglass cable J-V10-3288PTN-1






Main Features

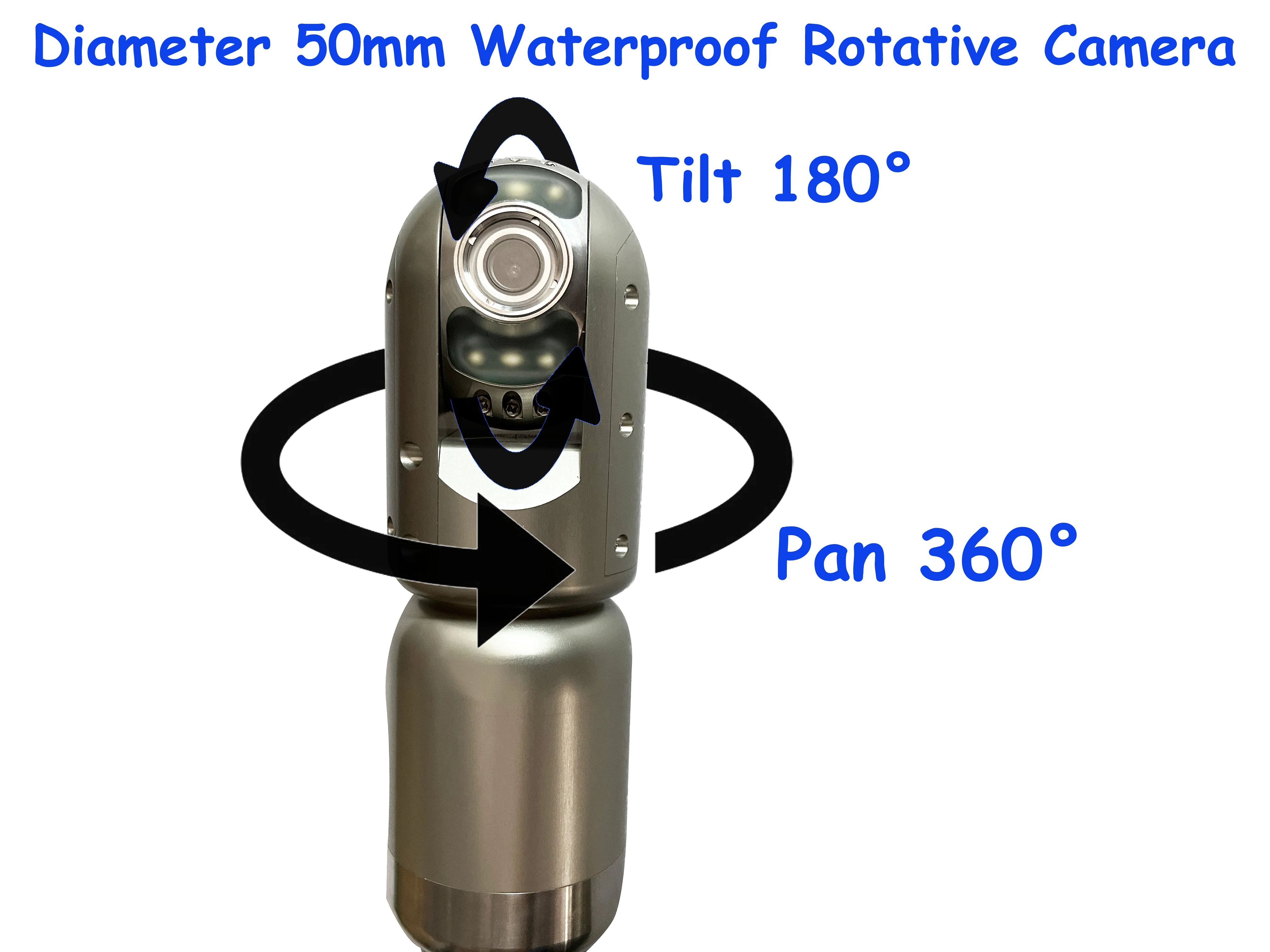

1. 360 degree rotation camera head, Pan 360°,Tilt 180°
2. 1/3 CMOS,1.3MP pixel AHD camera head, waterproof up to 10 bars
3. 10 inch IPS lcd screen, 1280*720 resolution

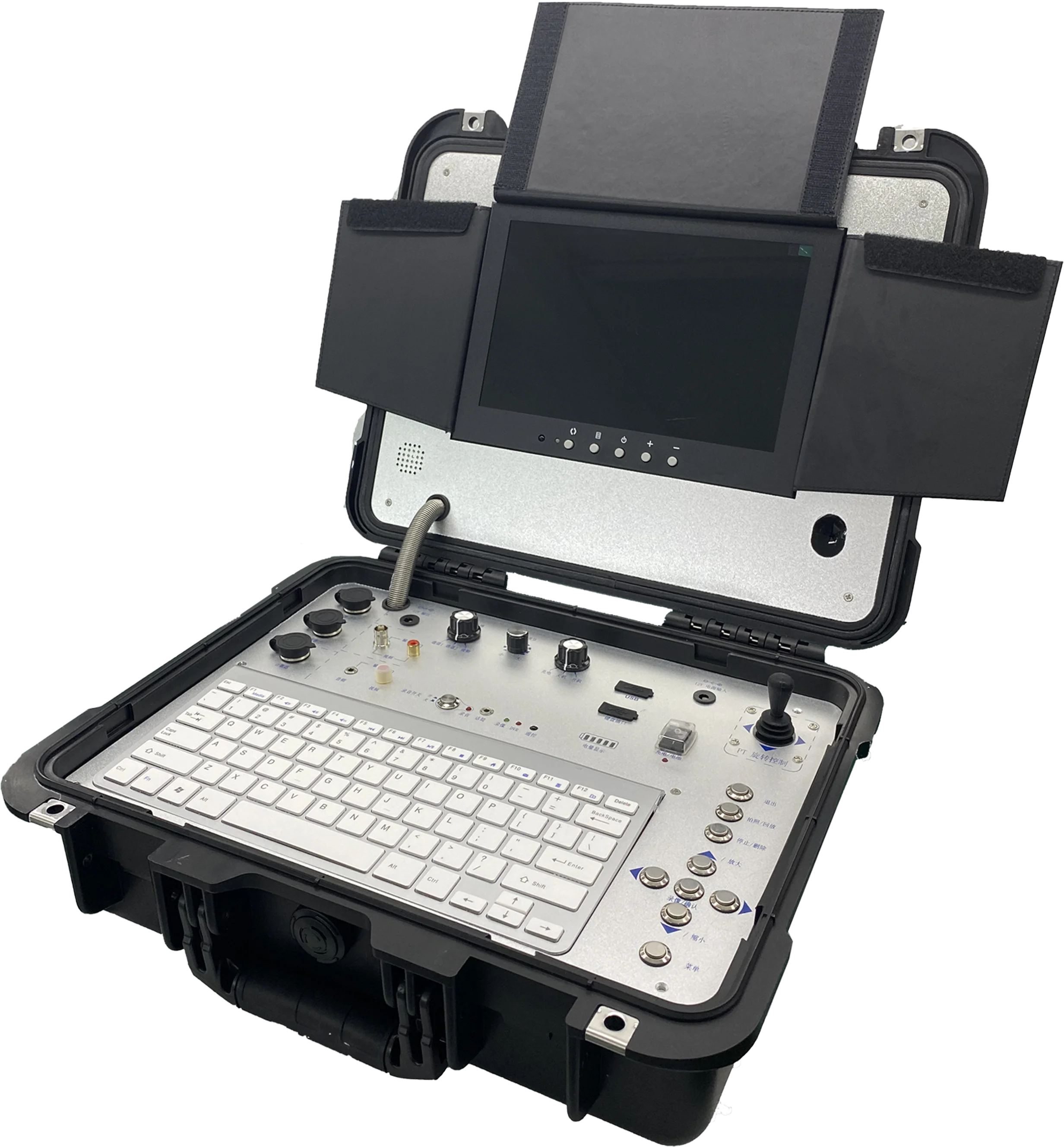

4. DVR control box with audio ,video recording and photography function
5. 60m / 100m / 150m Dia.9mm fiberglass copper axis cable , it can make good camera image for long cable
6. USB bluetooth keyboard to typewrite the words
7. Camera video resolution is 720P
8. Built in 8800mA li-ion battery inside ,support uint working more than 6 hours
9. Digital meter counter function, error is less than 1%





Packing list


1 Pan tilt rotation camera head 1pcs
2 60m 9mm cable reel 1pcs
3 DVR control box with remote controller 1pcs
4 5pin Link cable (3m /5m) 1set
5 Test Cable for Pan tilt camera head 1pcs
6 Charger adptor 1pcs
7 16G USD flash disk 1pcs
8 Seal ring 2pcs 9 Earphone 1pcs
10 Camera skid(Dia.85mm and Dia.220mm) 1set
11 User manual 1pcs

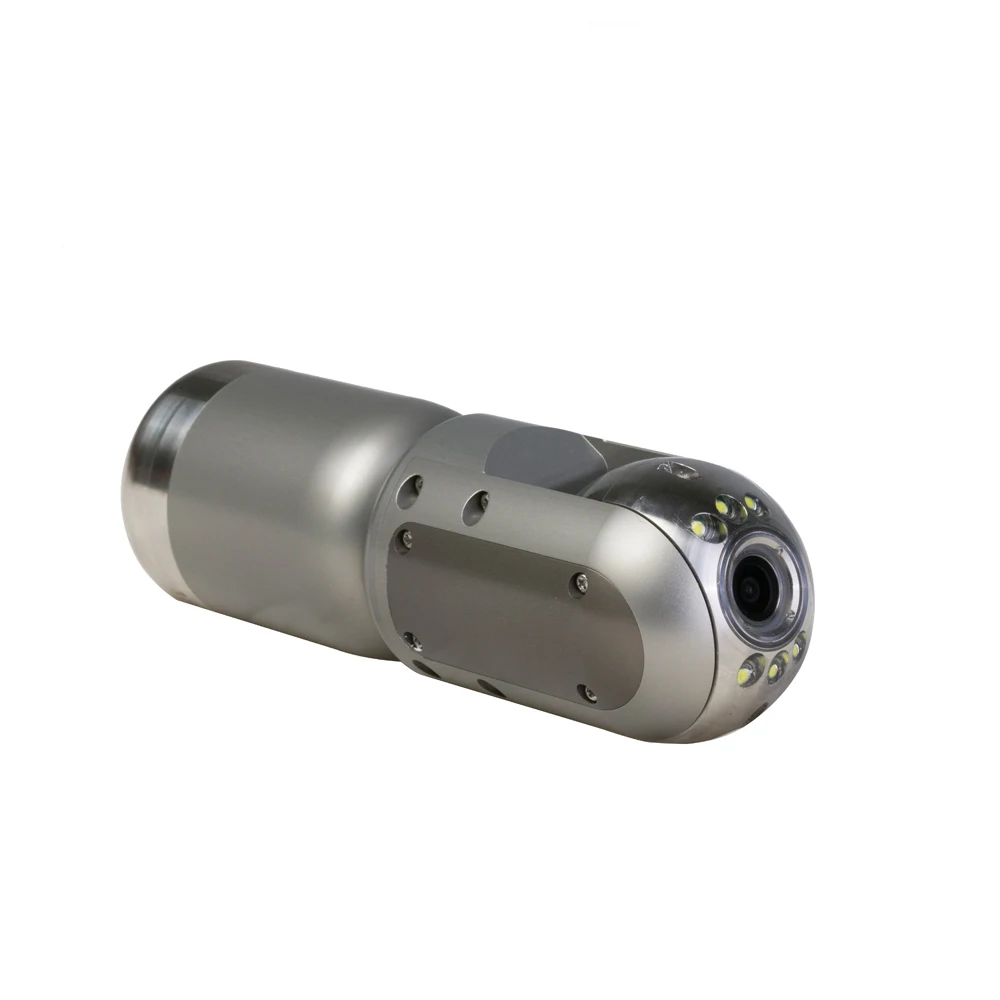

* Camera size Ø50mm x 154mm, sensor 1/3" CMOS ,1.3MP pixel
* Waterproof IP68 up to 10 bar
* View range 120°
* Rotation: Pan 360°, Tilt 180°
* lens position automatic reset
* Slip coupling for rotation axle
* 6pcs high light LED lighting adjustable
* Detachable with pins type connection to Cable Reel
* Lens window sapphire glass

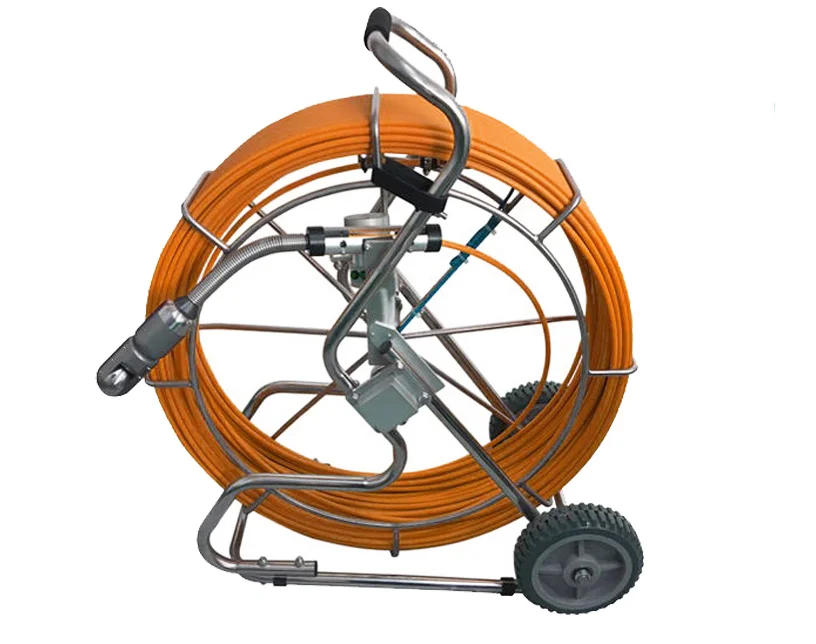

* Fiberglass copper axis push rod cable
* Cable diameter ø9mm
* Cable length from 60m to 150m optional
* Reel size 70 x 28 x 84cm





* 10"HD IPS LCD Screen, 1280X720 resolution
* PT camera Joystick
* AHD DVR SYSTEM with recording 720P video, auido and photography function
* USB bluetooth Keyboard real time typewriting

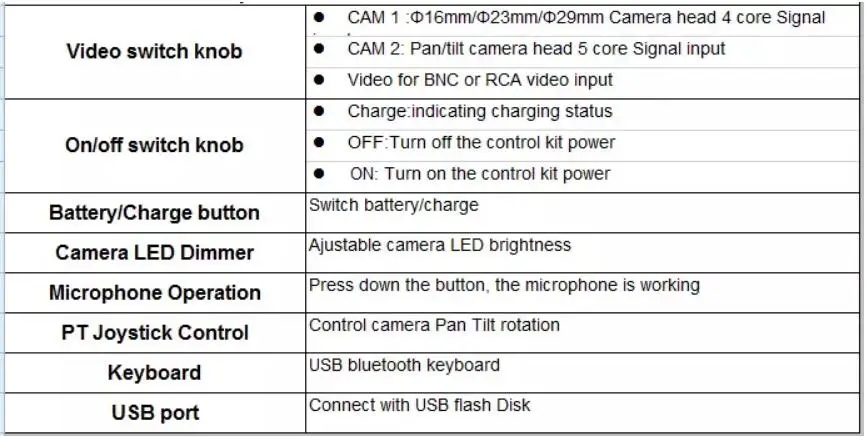

* Video input jack 3 options(CAM1,CAM2_PT and Video IN)

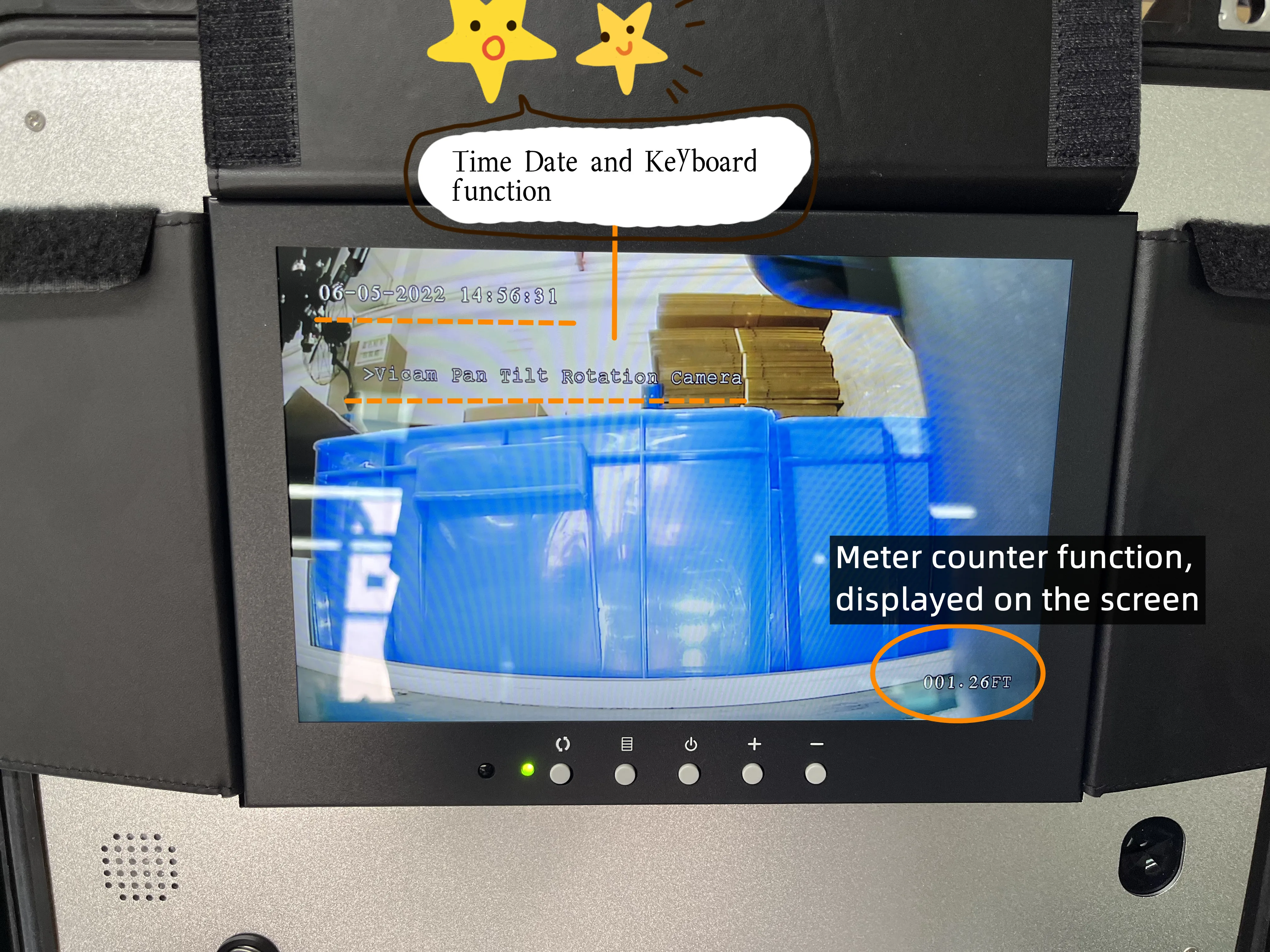

* Digital meter counter function, display on the screen
* 8800mA rechargeable Li-ion Battery Pack
* Battery level indicator
