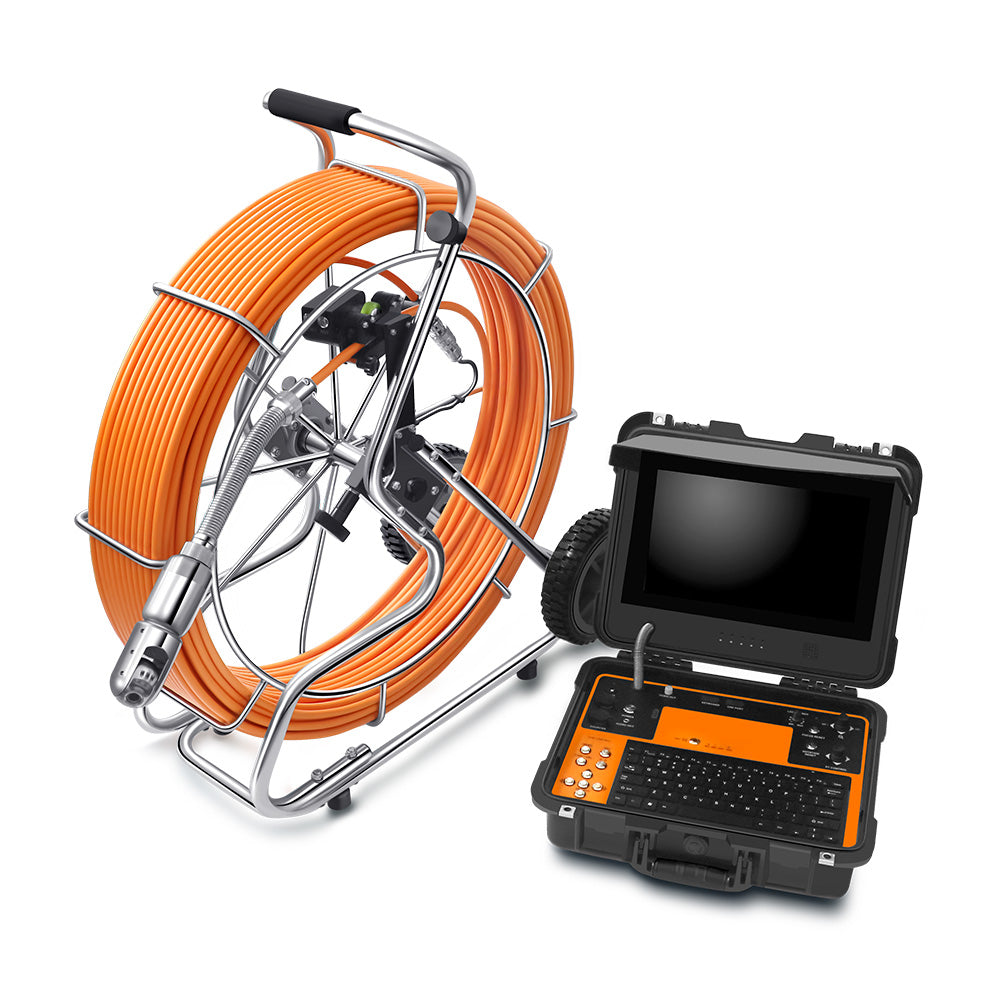

50mm Pan Tilt HD Pipe Camera System

​

Parameter:



1. 360 degree rotation camera head, Pan 360°，Tilt 180°

2. Manual focus function

3. Image magnification and reduction function

4. 1/3 CMOS,1.3MP camera head

5. 13 inch IPS LCD screen, 1280*720 resolution

6. DVR control box with audio ,video recording and photography function

7. 60m* Dia.9mm/11mm fiberglass copper axis cable , it can make good camera image for long cable . 8. USB bluetooth keyboard to typewrite the words

9. Camera video resolution is 720P/1080P

10. Built in 8800mA li-ion battery inside ,support uint working more than 5 hours 11. Digital meter counter function, error is less than 1%



​

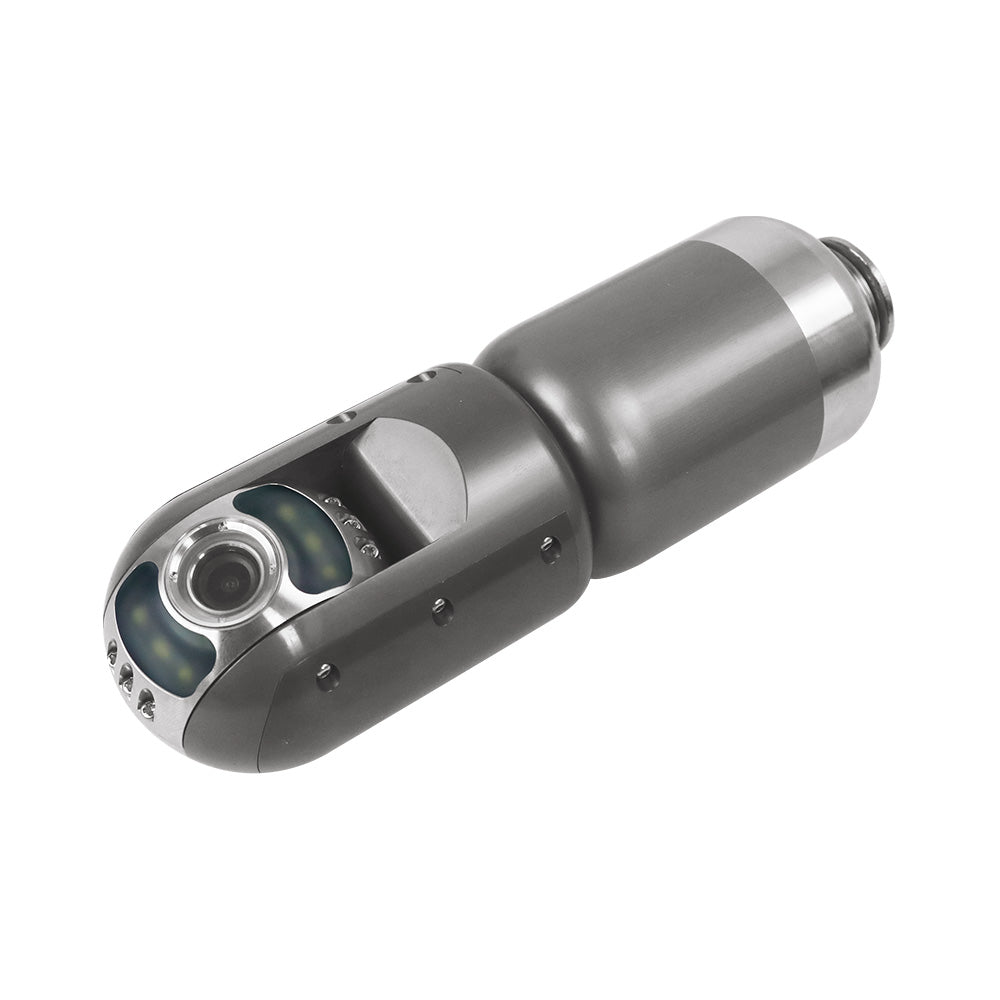

* Camera size Ø50mm x 154mm, sensor 1/3" CMOS ,1.3MP pixel,720P

* Manual focus function, minimum distance is about 30mm

* Waterproof IP68 up to 10 bar

* View range 120°

* Rotation: Pan 360°， Tilt 180°

* lens position automatic reset

* 6pcs high LED lighting adjustable

* Lens window sapphire glass

​

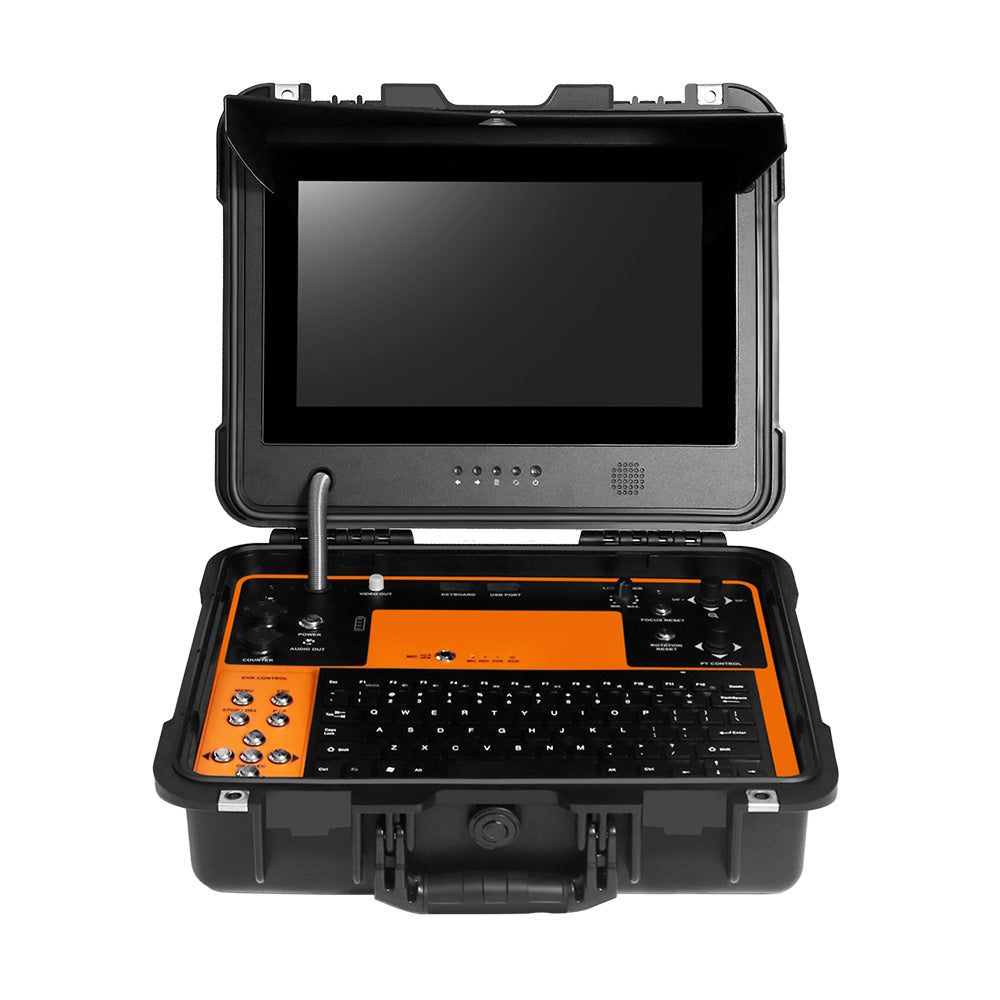

*13" HD IPS LCD Screen, 1280X720 resolution

* PT camera Joysticks for rotation and focusfunctions

* HD DVR SYSTEM with recording 720P video, auido and photography function

* USB bluetooth Keyboard for real time typewriting

* Video input jack, available for connecting big and small camera heads

* Digital meter counter function, displayed on the screen

* 8800mA rechargeable Li-ion Battery Pack

* Battery level indicator

* 16X Image magnification

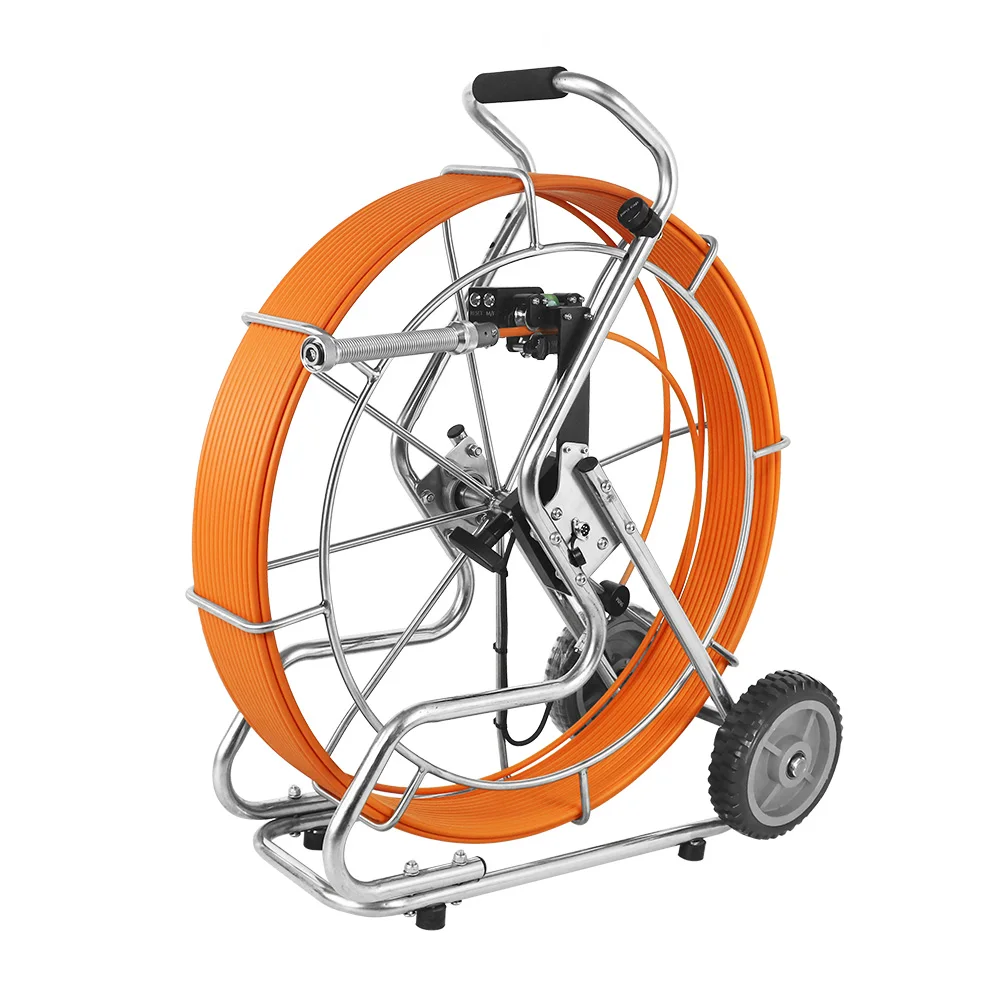

* Fiberglass push rod cable

* Cable diameter ø9mm / ø11mm

* Cable length from 60m to 150m optional

* Reel size 70 x 28 x 84cm

​

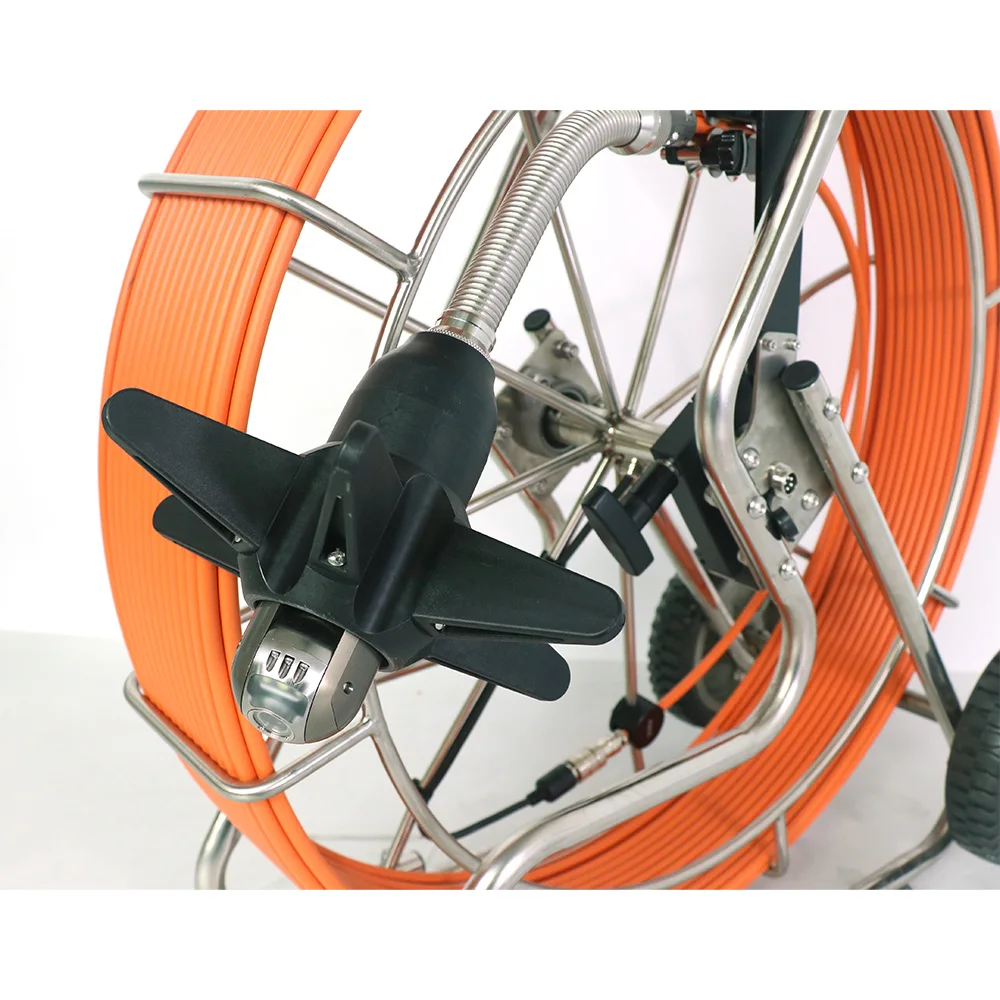

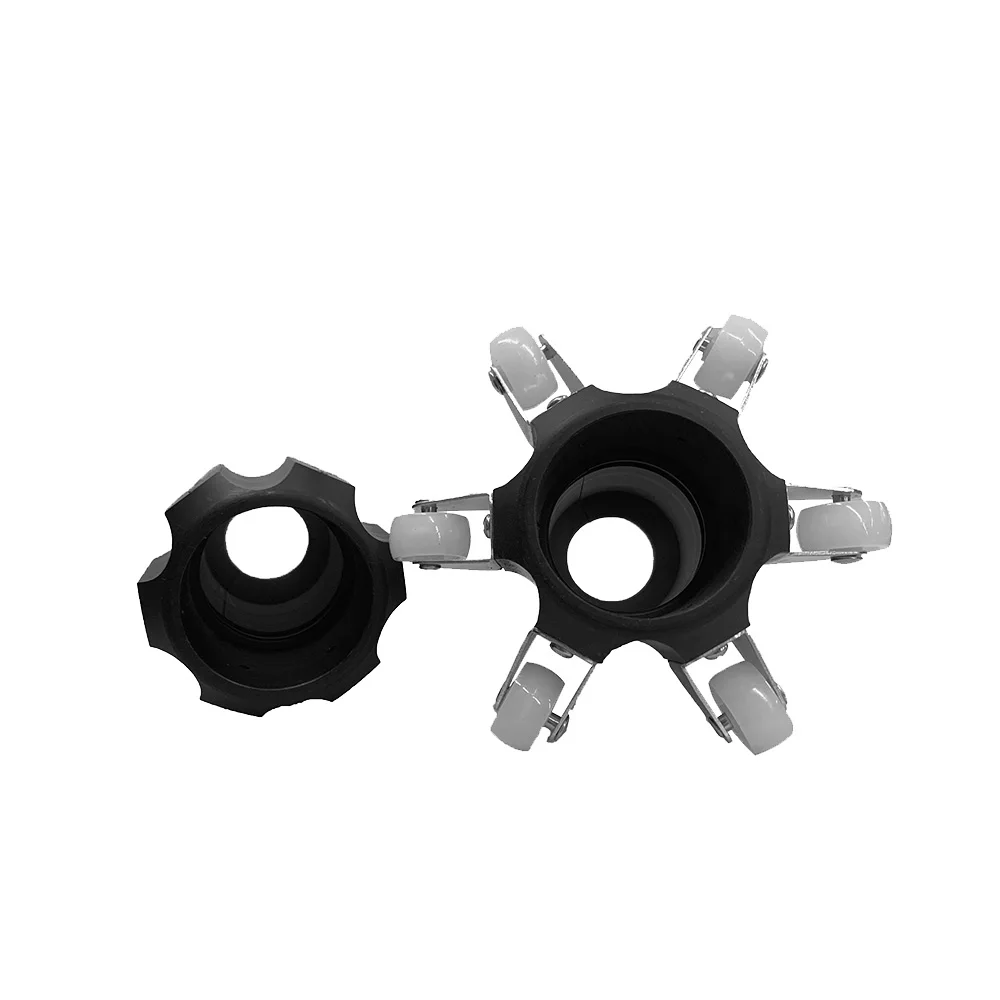

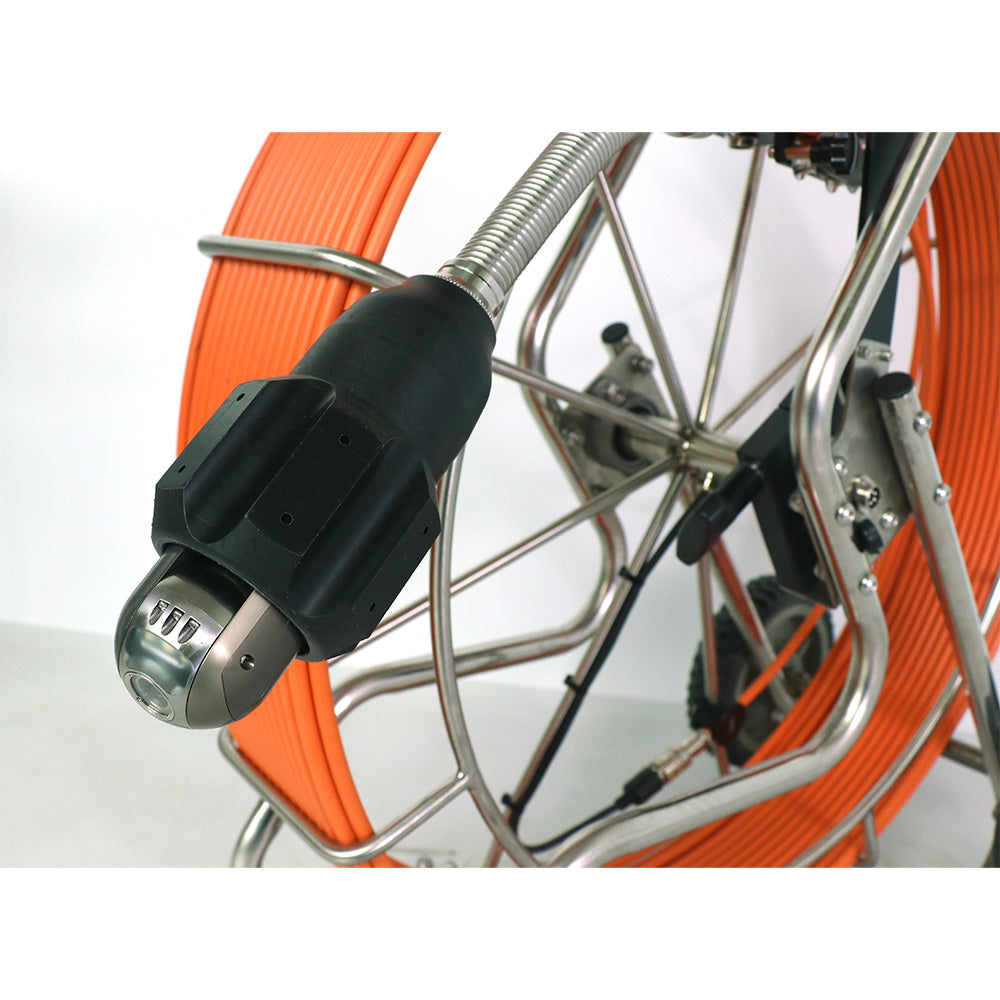

For 50mm PTZ camera head:

2optional diameters：

Dia.146mm/ Dia.85mm



​ ​
